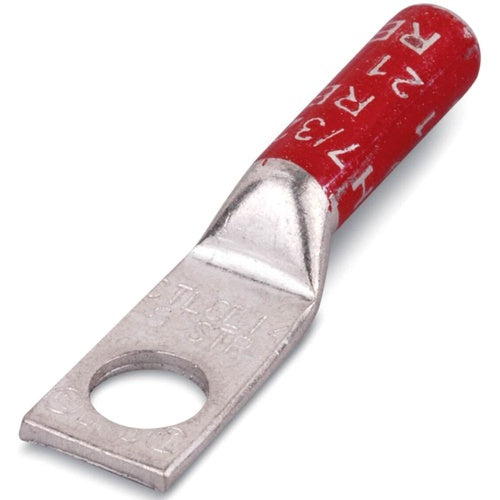

Blackburn CTL8L-14 Copper Test Point 1-Hole Lug Long Barrel 8 1/4B Red

Overview

Blackburn CTL8L-14 Copper Test Point 1-Hole Lug Long Barrel 8 1/4B Red

Product Specifications

• UPC: 78378641035
• Pad Size: 5/8 INCH L X 13/32 INCH W X 1/16 INCH THK
• Number Of Pad Holes: 1
• Stud Size: 1/4 INCH
• Color: RED
• Die Index: 21, 71H
• Material: TIN PLATED SEAMLESS COPPER
• Overall Length: 1-5/8 INCH
• Approval: UL, CSA
• Additional Information: STANDARD PACKAGE 50 PER CARTON0
• Catalog Number: CTL8L-14
• Brand Name: Blackburn[R]
• Model: CTL
• Voltage Rating: 35 KV
• Conductor Material: COPPER
• Conductor Size: 8 AWG STRANDED, 8 AWG (FLEX), 37/24
• Barrel Type: LONG
• Barrel Length: 25/32 INCH
• Catalog Description: COPPER ONE-HOLE LUG, LONG BARREL, MAX 35KV, 8 STR. WIRE, 1/4 BOLT SIZE, TIN PLATED, DIE COLOR CODE RED
• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Seamless Copper Material; Red Color; 1-5/8 Inch Overall Length; 25/32 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 35 kV Voltage Rating; 8 AWG Stranded, 8 AWG (Flex), 37/24 Conductor Size; 1/4 Inch Stud Size; 21, 71H Die Index; 5/8 Inch L X 13/32 Inch W X 1/16 Inch Thk Pad Size; 1 Pad Hole(S); Long Barrel Type; BLACKBURN[R] Brand; Standard Package 50 Per CARTON0; CTL Model
• Manufacturer: THOMAS & BETTS BLACKBURN
• Manufacturer Brand: T&B Blackburn
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 783786410354
• SKU Name: ctl8l14 blackburn
