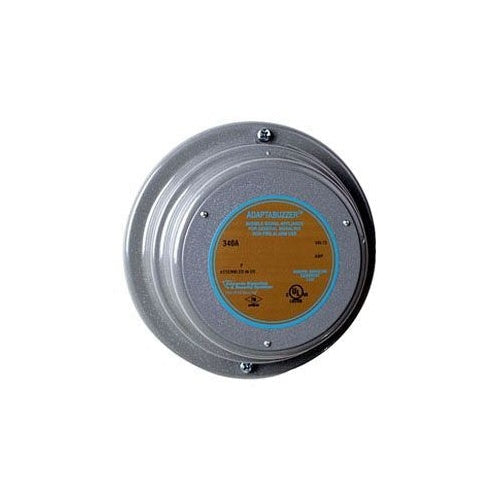

Edwards 340A-G5 24Vac Vibrating Buzzer

Overview

Edwards 340A-G5 24Vac Vibrating Buzzer

Product Specifications

• UPC: 78264023680
• Shape: Round
• Mounting: Single Gang Box, 3-1/4 Inch, 3-1/2 Inch or 4 Inch Octagon Box, Surface, Electrical Box
• Finish: Corrosion Resistant Heat Flowed Epoxy
• Size: 5-1/16 Inch Diameter x 2-1/4 Inch Height
• Application: Paging, Scheduling, Timing
• Approval: UL (Canada and US), FM
• Additional Information: Power Rating 6 Volt Amp; DC Coil Resistance 28 Ohm
• Catalog Number: 340A-G5
• Brand Name: AdaptaBuzzer[TM]
• Model: 340A
• Type: Heavy Duty Buzzer, Adjustable Volume
• Operating Principle: Vibrating Armature
• Operating Voltage: 24 Volt AC
• Operating Current: 0.25 Amp
• Sound Intensity: 80 Decibel at 1 Meter, 70 Decibel at 10 Foot
• Catalog Description: AC VIBRATING BUZZER. VOLUME ADJUSTABLE.
• Category: Bells,Horns,Sirens,Buzzers,Strobes
• Full Technical Description: Heavy Duty Buzzer, Adjustable Volume Type; 5-1/16 Inch Diameter X 2-1/4 Inch Height Size; Corrosion Resistant Heat Flowed Epoxy Finish; Round Shape; UL (Canada and Us), FM Approval; 24 Volt AC Operating Voltage; Paging, Scheduling, Timing Application; Single Gang Box, 3-1/4 Inch, 3-1/2 Inch or 4 Inch Octagon Box, Surface, Electrical Box Mounting; 0.25 Amp Operating Current; 80 Decibel at 1 Meter, 70 Decibel at 10 Foot Sound Intensity; Vibrating Armature Operating Principle; Power Rating 6 Volt Amp; DC Coil Resistance 28 Ohm; 340A Model
• Manufacturer: Edwards Signaling
• Manufacturer Brand: Security Systems/Fire Alarm Systems
• Sub Category: Buzzer
• Unspsc: 46171607
• UPC 12 Digit: 782640236802
• SKU Name: edw 340ag5

Resources

• Manufacturer Spec Sheet
