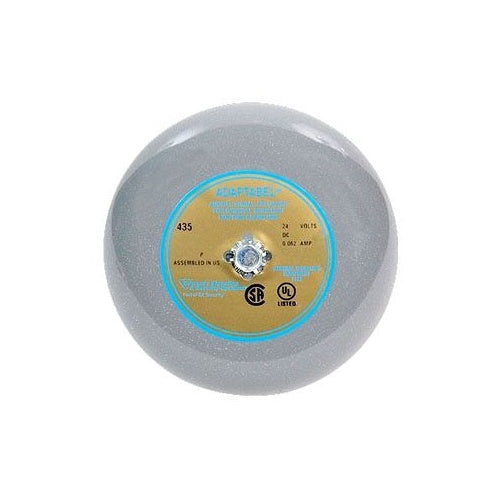

Edwards 435-8G1 8" 24Vdc Vibrating Bell

Overview

Edwards 435-8G1 8" 24Vdc Vibrating Bell

Product Specifications

• UPC: 78264024532
• Size: 8 Inch Dia x 3-11/32 Inch D
• Housing Material: Corrosion Resistant Heat Flowed Epoxy Finished Die-Cast
• Mounting: Octagon Box/Single Gang Box/Surface
• Application: Outdoor
• Approval: UL 464, FM
• Additional Information: DC Coil Resistance 155 Ohm; PLC Compatible
• Catalog Number: 435-8G1
• Model: 435
• Type: Round Vibrating Gong
• Voltage Rating: 24 VDC
• Current Rating: 0.062 Ampere
• Power Rating: 1.5 VA
• Sound Intensity: 103 dB at 1 M, 93 dB at 10 Ft
• Gong Size: 8 Inch Dia
• Catalog Description: DC VIBRATING BELL. THE STRIKER CONTINUES TO STRIKE THE GONG IN RAPID-FIRE ACTION AS LONG AS CURRENT IS APPLIED. 8 INCH GONG
• Category: Bells,Horns,Sirens,Buzzers,Strobes
• Full Technical Description: Round Vibrating Gong Type; 8 Inch Dia X 3-11/32 Inch D Size; UL 464, FM Approval; Outdoor Application; 24 VDC Voltage Rating; Octagon Box/Single Gang Box/Surface Mounting; 0.062 Ampere Current Rating; 1.5 VA Power Rating; Corrosion Resistant Heat Flowed Epoxy Finished Die-Cast Housing Material; 103 dB at 1 M, 93 dB at 10 ft Sound Intensity; 8 Inch Dia Gong Size; DC Coil Resistance 155 Ohm; PLC Compatible; 435 Model
• Manufacturer: Edwards Signaling
• Manufacturer Brand: Security Systems/Fire Alarm Systems
• Sub Category: Bell
• Unspsc: 60131402
• UPC 12 Digit: 782640245323
• SKU Name: edw 4358g1

Resources

• Manufacturer Spec Sheet
