Edwards 48FINA-N5-25WH 120Vac Halogen Flashing Beacon Amber

Overview

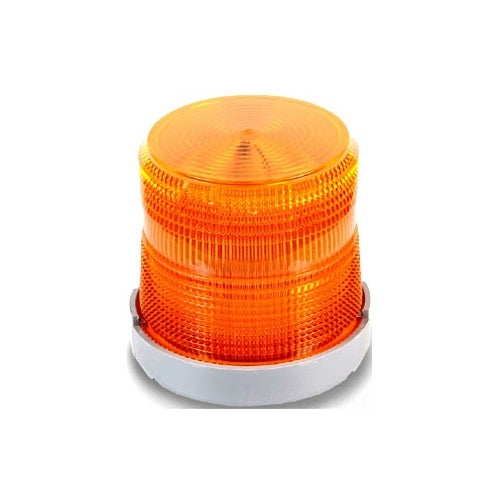

Edwards 48FINA-N5-25WH 120Vac Halogen Flashing Beacon Amber

Product Specifications

• UPC: 78264025486
• Flash Rate: 65 FPM
• Material: Shatter Resistant Polycarbonate Lens
• Lens Color: Amber
• Size: 4-9/32 Inch Diameter x 4-7/32 Inch Height
• Mounting: 1/2 Inch Panel/Conduit
• Enclosure: NEMA 4X
• Application: Application Commercial, Indoor/Outdoor, Industrial
• Approval: UL 1638, CUL
• Additional Information: Lamp Life 25000 Hour; Lens Type Fresnel; Base Material Gray ABS Plastic; Temperature Rating -31 to 150 Deg F
• Catalog Number: 48FINA-N5-25WH
• Brand Name: Edwards Signaling
• Model: 48FIN
• Type: Flashing Light
• Operating Voltage: 120 Volt AC at 50/60 Hertz
• Operating Current: 0.2 Amp
• Lamp Type: 25 Watt Halogen
• Light Intensity: 175 Lumen
• Catalog Description: 48 SERIES FLASHING INCANDESCENT BEACON DESIGNED FOR INDOOR OR OUTDOOR APPLICATIONS.
• Category: Bells,Horns,Sirens,Buzzers,Strobes
• Full Technical Description: Flashing Light Type; Shatter Resistant Polycarbonate Lens Material; 4-9/32 Inch Diameter X 4-7/32 Inch Height Size; UL 1638, CUL Approval; 120 Volt AC at 50/60 Hertz Operating Voltage; Application Commercial, Indoor/Outdoor, Industrial Application; 1/2 Inch Panel/Conduit Mounting; NEMA 4X Enclosure; 25 Watt Halogen Lamp Type; 0.2 Amp Operating Current; Amber Lens Color; 65 FPM Flash Rate; 175 Lumen Light Intensity; Adaptabeacon [R] Brand; Lamp Life 25000 Hour; Lens Type Fresnel; Base Material Gray ABS Plastic; Temperature Rating -31 to 150 Deg F; 48FIN Model
• Manufacturer: Edwards Signaling
• Manufacturer Brand: Security Systems/Fire Alarm Systems
• Sub Category: Strobe/Flashing Light Unit
• Unspsc: 39111706
• UPC 12 Digit: 782640254868
• SKU Name: edw 48finan525wh

Resources

• Manufacturer Spec Sheet
