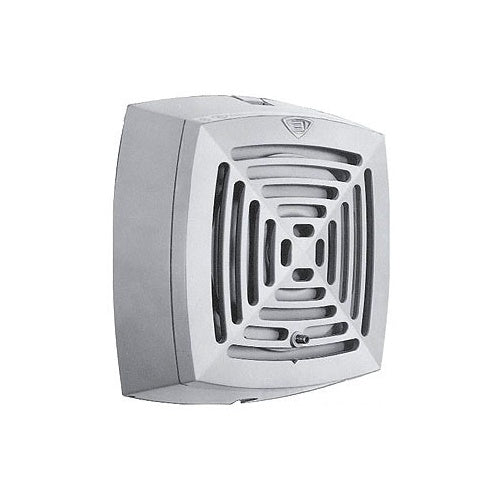

Edwards 874-G5 24Vac Horn Grille

Overview

Edwards 874-G5 24Vac Horn Grille

Product Specifications

• UPC: 78264026220
• Size: 2-1/8 Inch Depth x 5 Inch Height
• Mounting: Surface
• Application: Indoor, Alarm, Commercial, Industrial, Institutional, Paging, Timing, Security Warning
• Approval: UL, FM
• Additional Information: Process Corrosion Resistant Die-Cast; DC Coil Resistance 5.2 Ohm; Duty Cycle 400 Hour
• Catalog Number: 874-G5
• Brand Name: AdaptaHorn[R]
• Model: 874
• Type: Vibrating Horn with Grille
• Voltage Rating: 24 Volt AC 50/60 Hertz
• Current Rating: 0.63 Amp
• Power Rating: 15.1 Volt Amp
• Sound Intensity: 113 Decibel at 1 Meter, 103 Decibel at 10 Foot
• Catalog Description: LOW-CURRENT, HIGH DECIBEL SURFACE MOUNT AC VIBRATING HORN FOR HEAVY-DUTY USE. SUPPLIED COMPLETE WITH ADAPTAPLATE FOR EASY INSTALLATION.
• Category: Bells,Horns,Sirens,Buzzers,Strobes
• Full Technical Description: Vibrating Horn With Grille Type; 2-1/8 Inch Depth X 5 Inch Height Size; UL, FM Approval; Indoor, Alarm, Commercial, Industrial, Institutional, Paging, Timing, Security Warning Application; 24 Volt AC 50/60 Hertz Voltage Rating; Surface Mounting; 0.63 Amp Current Rating; 15.1 Volt Amp Power Rating; 113 Decibel at 1 Meter, 103 Decibel at 10 Foot Sound Intensity; Adaptahorn [R] Brand; Process Corrosion Resistant Die-Cast; DC Coil Resistance 5.2 Ohm; Duty Cycle 400 Hour; 874 Model
• Manufacturer: Edwards Signaling
• Manufacturer Brand: Security Systems/Fire Alarm Systems
• Sub Category: Horn
• Unspsc: 46171602
• UPC 12 Digit: 782640262207
• SKU Name: edw 874g5

Resources

• Manufacturer Spec Sheet
