Overview

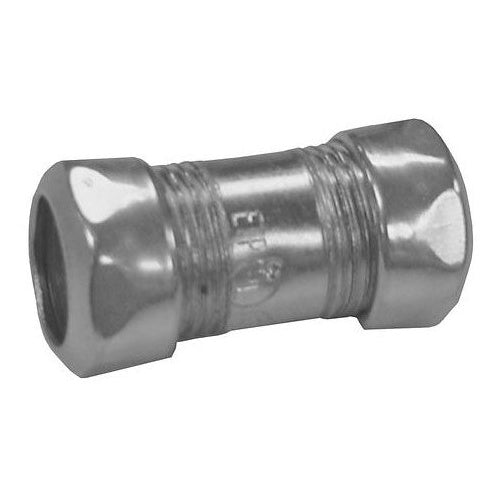

Appleton 6050S 1/2" Emt Comp Coupling

Product Specifications

• UPC: 68785586699
• Constructional Feature: Concretetight, Raintight
• Approval: UL 514B, CUL, CSA
• Used On: EMT Conduit
• Additional Information: Applicable Standard NEMA FB-1
• Catalog Number: 6050S
• Brand Name: ETP[R]
• Model: Series 6000S
• Type: Compression
• Trade Size: 1/2 Inch
• Diameter: 0.84 Inch
• Length: 1.38 Inch
• Material: Zinc Plated Steel (Body/Nut)
• Catalog Description: FEATURES:CONCRETETIGHT, ZINC ELECTRO PLATED FINISH, STANDARD:UL 514B, CSA C22.2, NEMA FB-1, TRADE SIZE:0.5IN, OUTSIDE DIAMETER:0.84375IN, LENGTH:0.375IN, MATERIAL:STEEL
• Category: Steel Compression Emt Couplings
• Full Technical Description: Compression Type; Zinc Plated Steel (Body/Nut) Material; 1.38 Inch; EMT Conduit Used on; UL 514B, CUL, CSA Approval; 0.84 Inch Diameter; 1/2 Inch Trade Size; Concretetight, Raintight; Etp Brand; Applicable Standard NEMA FB-1; SERIES 6000S Model
• Manufacturer: EGS Electrical Group
• Manufacturer Brand: EGS Electrical Group
• Sub Category: Rigid/EMT Conduit Coupling
• Unspsc: 39131707
• UPC 12 Digit: 687855866991
• SKU Name: egs 6050s

Resources

• Manufacturer Spec Sheet
