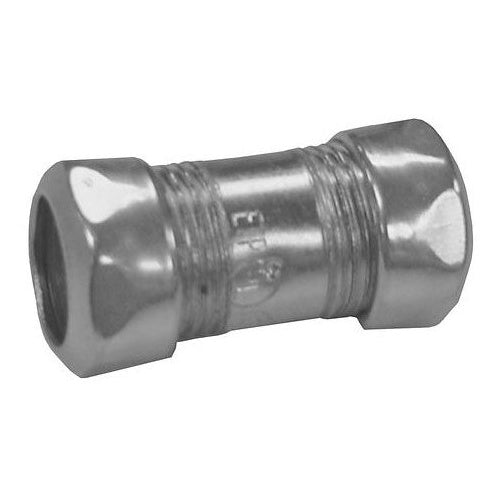

Appleton 6150S 1-1/2" Emt Comp Coupling

Overview

Appleton 6150S 1-1/2" Emt Comp Coupling

Product Specifications

• UPC: 68785586719
• Constructional Feature: Concretetight, Raintight
• Approval: UL 514B, CUL, CSA
• Used On: EMT Conduit
• Additional Information: Applicable Standard NEMA FB-1
• Catalog Number: 6150S
• Brand Name: ETP[R]
• Model: Series 6000S
• Type: Compression
• Trade Size: 1-1/2 Inch
• Diameter: 1.94 Inch
• Length: 2.5 Inch
• Material: Zinc Plated Steel (Body/Nut)
• Catalog Description: FEATURES:CONCRETETIGHT, ZINC ELECTRO PLATED FINISH, STANDARD:UL 514B, CSA C22.2, NEMA FB-1, TRADE SIZE:1.5IN, OUTSIDE DIAMETER:1.9375IN, LENGTH:2.5IN, MATERIAL:STEEL
• Category: Steel Compression Emt Couplings
• Full Technical Description: Compression Type; Zinc Plated Steel (Body/Nut) Material; 2.5 Inch; EMT Conduit Used on; UL 514B, CUL, CSA Approval; 1.94 Inch Diameter; 1-1/2 Inch Trade Size; Concretetight, Raintight; Etp Brand; Applicable Standard NEMA FB-1; SERIES 6000S Model
• Manufacturer: EGS Electrical Group
• Manufacturer Brand: EGS Electrical Group
• Sub Category: Rigid/EMT Conduit Coupling
• Unspsc: 39131707
• UPC 12 Digit: 687855867196
• SKU Name: egs 6150s

Resources

• Manufacturer Spec Sheet
