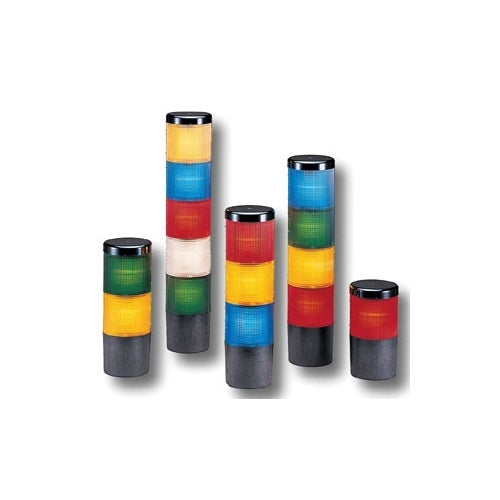

Federal-Signal LSL-024R Litestak Light Module, 24VDC, Red

Product Specifications

• Application: Indoor
• Standard: UL Listed/cUL Listed/CSA Certified
• Sub Brand: Litestak
• Type: Status Indicator Light Module
• Voltage Rating: 24 VDC
• Environmental Conditions: 0 to 120 DEG F
• Brand Name: Federal Signal
• Enclosure: Type 1
• Lamp Life: 2,500 HR
• Lamp Type: Incandescent
• Lens Color: Red
• Lens Material: Polycarbonate
• Size: 3.25 H x 3.93 W x 3.93 D IN
• Special Features: Optional Sound Module Available (Models LSS Or LSH)
• Catalog Description: LITESTAK INCANDESCENT LIGHT MODULE, UL AND CUL, 24VDC, RED
• Category: Bells,Horns,Sirens,Buzzers,Strobes
• Full Technical Description: Light Module Type; 3.93 Inch Diameter X 3.25 Inch Height Size; UL, CUL, CSA Approval; 24 Volt DC Operating Voltage; Indoor Application; Surface and 3/4 Inch Threaded Pipe Mounting; NEMA 1 Enclosure; Incandescent Lamp Type; 0.76 Amp Operating Current; Polycarbonate Lens Material; Red Lens Color; 123 Candela Lamp Intensity; 1 Light Unit(S); LITESTAK[R] Brand; Life in Hour 2500; Operating Temperature 0 to 120 Deg F; Includes Lens, Lamp; LSL Model
• Made In Usa: Yes
• Manufacturer: Federal Signal Corporation
• Manufacturer Brand: Federal Signal
• Sub Category: Assembled Stack Light Unit
• Unspsc: 32151503
• UPC 12 Digit: 782979268246
• SKU Name: fedsig lsl024r
