Overview

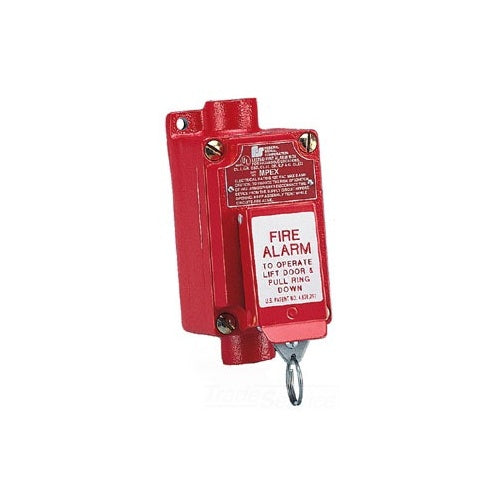

Federal-Signal MPEX Pull Station, Explosion-Proof

Product Specifications

• Brand Name: Federal Signal
• Dimensions: 6.4 H x 3.1 W x 4.1 D IN
• Mounting: Wall
• Operating Temperature: -13 to 104 DEG F
• Operating Voltage: 120VAC
• Special Features: Designed For Harsh Environments
• Standard: UL Listed/cUL Listed/CSFM Approved/CSA Certified
• Type: Explosion-Proof Fire Alarm Pull Station
• Catalog Description: PULL STATION, FIRE ALARM, EXPLOSION-PROOF, UL AND ULC FIRE CID1, RED
• Category: Bells,Horns,Sirens,Buzzers,Strobes
• Full Technical Description: 3.1 Inch W X 4.1 Inch D X 6.4 Inch H Size; UL, CSA, CSFM Approval; 6 Ampere Contact Current Rating; 120 VAC Contact Voltage Rating; Material Cast Aluminum
• Made In Usa: Yes
• Manufacturer: Federal Signal Corporation
• Manufacturer Brand: Federal Signal
• Sub Category: Fire Alarm Station
• Unspsc: 46191505
• UPC 12 Digit: 782979200758
• SKU Name: fedsig mpex

Resources

• Manufacturer Spec Sheet
