Overview

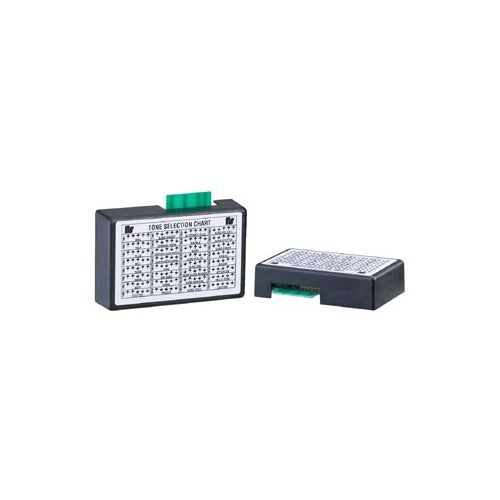

Federal-Signal UTM Universal Tone Module

Product Specifications

• Brand Name: Federal Signal
• Type: Universal Tone Module
• Color: Black
• Dimensions: 2.25 H x 3.25 W x 0.84 D IN
• Material: Plastic
• Special Features: Compatible With All Selectone Equipment
• Standard: UL Listed/cUL listed/CSA Certified/CSFM Approved
• Sub Brand: Selectone
• Termination: Plug-In
• Tone: 32 Selectable Tones
• Catalog Description: SELECTONE UNIVERSAL TONE MODULE, UL AND CUL
• Category: Sound & Audio Systems
• Full Technical Description: Universal Type; 3.25 Inch Length X 0.84 Inch Width X 2.25 Inch Height Size; UL, CUL, CSA, CSFM Approval; Commercial, Institutional, Industrial Environment Application; Plastic Cover Housing Material; 32 Tone(S); Warble Sound Type; Yes Selectable Tone; 6.3 Cps Repetition Rate; Dip Switch Tone Selection Type; 560 to 1055 Hertz Tone Frequency; SELECTONE[R] Brand; Installation Plug-in; UTM Model
• Made In Usa: Yes
• Manufacturer: Federal Signal Corporation
• Manufacturer Brand: Federal Signal
• Sub Category: Tone Generator Module
• Unspsc: 46171602
• UPC 12 Digit: 782979202172
• SKU Name: fedsig utm

Resources

• Technical Line Drawing
• Manufacturer Spec Sheet
