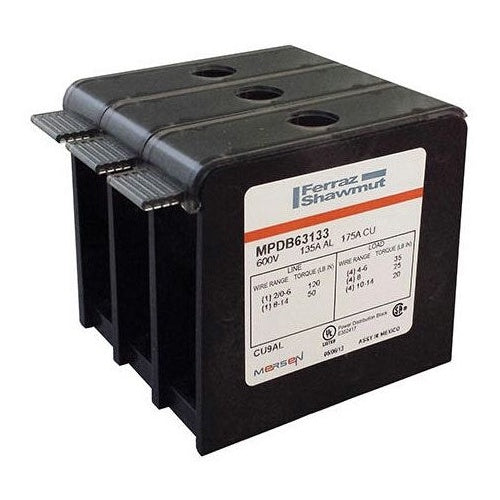

Mersen-Ferraz 63133 Alum 3P Power Distribution Block

Overview

Mersen-Ferraz 63133 Alum 3P Power Distribution Block

Product Specifications

• UPC: 78200175861
• Number Of Secondary Openings Per Pole: 4
• Secondary Opening Wire Size: 14 to 4 AWG
• Conductor Material: Aluminum
• Cover Type: (3) 08530, Dead Front Polycarbonate
• Size: 2.71 Inch L x 2.88 Inch W x 1.94 Inch H
• Connector Material: Tin Plated Aluminum
• Housing Material: Glass Filled Polycarbonate
• Approval: UL, CSA
• Additional Information: Short Circuit Current Rating 100 Kiloampere; Application Box, Stud and Quick-Connect Terminations for Copper and/or Aluminum Cables
• Catalog Number: 63133
• Model: 63000
• Type: Standard
• Voltage Rating: 600 V
• Current Rating: 185 Ampere (CSA), 175 Ampere (UL)
• Number Of Poles: 3
• Number Of Primary Openings Per Pole: 1
• Primary Opening Wire Size: 14 to 2/0 AWG
• Category: Power Blocks & Distribution Blocks
• Full Technical Description: Standard Type; 2.71 Inch L X 2.88 Inch W X 1.94 Inch H Size; Aluminum Conductor Material; UL, CSA Approval; 600 V Voltage Rating; 185 Ampere (CSA), 175 Ampere (UL) Current Rating; (3) 08530, Dead Front Polycarbonate Cover Type; Glass Filled Polycarbonate Housing Material; 3 Pole(S); Tin Plated Aluminum Connector Material; 14 to 4 AWG Secondary Opening Wire Size; 14 to 2/0 AWG Primary Opening Wire Size; 4 Secondary Openings Per Pole; 1 Primary Openings Per Pole; Short Circuit Current Rating 100 Kiloampere; Application Box, Stud and Quick-Connect Terminations For Copper And/Or Aluminum Cables; 63000 Model
• Manufacturer: Mersen - Ferraz Shawmut
• Manufacturer Brand: Mersen - Ferraz Shawmut, Inc.
• Sub Category: Power Distribution Block
• Unspsc: 39121410
• UPC 12 Digit: 782001758615
• SKU Name: frz 63133
