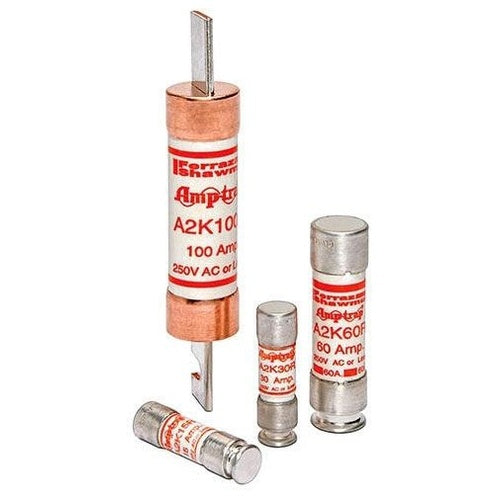

Mersen-Ferraz A2K500R 250V RK1 Fuse

Overview

Mersen-Ferraz A2K500R 250V RK1 Fuse

Product Specifications

• UPC: 78200191540
• Diameter: 2-9/16 Inch
• Length: 10-3/8 Inch
• Approval: UL 248/248-12, CSA C22.2
• Additional Information: Body Material Polyester/Glass-Melamine Laminate; Contact Material Tin Plated Copper; Mounting Type Clip; Application Loadcenter, Panelboard, Switchboard, Bus Duct, Feeder Circuit, Non-Inductive Load and Lightning Circuit
• Catalog Number: A2K500R
• Model: A2K-R
• Type: Class RK1
• Characteristics: Fast Acting
• Voltage Rating: 250 VAC/VDC
• Current Rating: 500 Ampere
• Interrupting Rating: 200 Kiloampere (AC), 20 Kiloampere (DC)
• Terminal Type: Blade
• Catalog Description: FUSE A2K-R - CLASS RK1 - FAST-ACTING 250VAC 250VDC 500A BLADE AMP-TRAP
• Category: Current Limiting Fuses
• Full Technical Description: Class RK1 Type; 10-3/8 Inch; UL 248/248-12, CSA C22.2 Approval; 250 VAC/VDC Voltage Rating; 2-9/16 Inch Diameter; 200 Kiloampere (AC), 20 Kiloampere (DC) Interrupting Rating; 500 Ampere Current Rating; Blade Terminal Type; Fast Acting Characteristics; AMP-TRAP[R] Brand; Body Material Polyester/Glass-Melamine Laminate; Contact Material Tin Plated Copper; Mounting Type Clip; Application Loadcenter, Panelboard, Switchboard, Bus Duct, Feeder Circuit, Non-Inductive Load and Lightning Circuit; A2K-R Model
• Manufacturer: Mersen - Ferraz Shawmut
• Manufacturer Brand: Mersen - Ferraz Shawmut, Inc.
• Sub Category: UL Power Fuse
• Unspsc: 39121627
• UPC 12 Digit: 782001915407
• SKU Name: frz a2k500r
