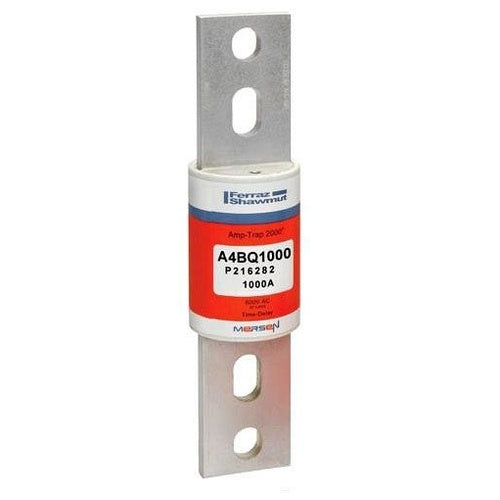

Mersen-Ferraz A4BQ1000 600V Class L Fuse

Product Specifications

• UPC: 78200193938
• Terminal Type: Blade
• Diameter: 2.5 Inch
• Length: 10.75 Inch
• Approval: UL 248/248-10, CSA C22.2
• Additional Information: RoHS Compliant; Body Style Rejection; Body/Insulating Material Fiberglass; Connection/Terminal Material Silver Plated Copper; Mounting Type Bolted; Application Main, Feeder, Large Motor, Lighting, Heating and General Load, Circuit Breaker Back-Up, UPS DC
• Catalog Number: A4BQ1000
• Brand Name: Amp-Trap 2000[R]
• Model: A4BQ
• Type: Class L
• Characteristics: Time Delay
• Voltage Rating: 600 Volt AC, 500 Volt DC
• Current Rating: 1000 Amp
• Interrupting Rating: 200 Kiloamp (AC), 100 Kiloamp (DC)
• Catalog Description: FUSE A4BQ - CLASS L - TIME-DELAY 600VAC 500VDC 1000A BLADE AMP-TRAP 2000
• Category: Current Limiting Fuses
• Full Technical Description: Class L Type; 10.75 Inch; UL 248/248-10, CSA C22.2 Approval; 600 Volt AC, 500 Volt DC Voltage Rating; 2.5 Inch Diameter; 200 Kiloamp (AC), 100 Kiloamp (DC) Interrupting Rating; 1000 Amp Current Rating; Blade Terminal Type; Time Delay Characteristics; Amp-Trap 2000[R] Brand; RoHS Compliant; Body Style Rejection; Body/Insulating Material Fiberglass; Connection/Terminal Material Silver Plated Copper; Mounting Type Bolted; Application Main, Feeder, Large Motor, Lighting, Heating and General Load, Circuit Breaker Back-Up, UPS DC Link, Battery Disconnect, Other DC Application; A4BQ Model
• Manufacturer: Mersen - Ferraz Shawmut
• Manufacturer Brand: Mersen - Ferraz Shawmut, Inc.
• Sub Category: UL Power Fuse
• Unspsc: 39121627
• UPC 12 Digit: 782001939380
• SKU Name: frz a4bq1000
