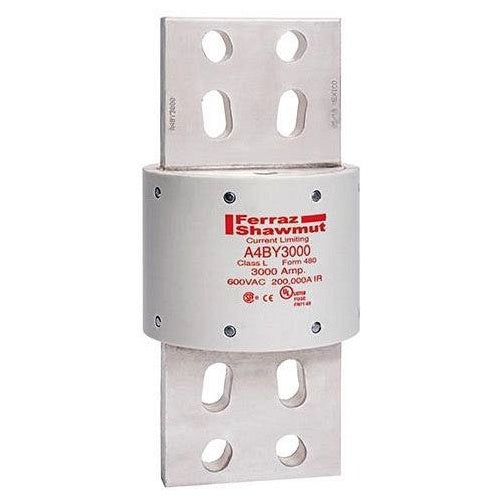

Mersen-Ferraz A4BY3000 600V Class L Fuse

Product Specifications

• UPC: 78200193926
• Terminal Type: Blade
• Diameter: 5 Inch
• Length: 10-3/4 Inch
• Approval: UL 248/248-10, CSA C22.2
• Additional Information: RoHS Compliant; Mounting Type Bolt; Material Glass Melamine (Body), Silver Plated Copper (Terminal); Application Main, Feeder, Circuit Breaker, Loadcenter, Panel Board, Switch Board, Metering Center; Applicable Standard IEC 269-2-1
• Catalog Number: A4BY3000
• Brand Name: Amp-Trap[R]
• Model: A4BY
• Type: Class L
• Characteristics: Time Delay
• Voltage Rating: 600 Volt AC, 300 Volt DC
• Current Rating: 3000 Amp
• Interrupting Rating: 200 Kiloamp (AC), 100 Kiloamp (DC)
• Catalog Description: FUSE A4BY - CLASS L - TIME-DELAY 600VAC 300VDC 3000A BLADE AMP-TRAP
• Category: Current Limiting Fuses
• Full Technical Description: Class L Type; 10-3/4 Inch; UL 248/248-10, CSA C22.2 Approval; 600 Volt AC, 300 Volt DC Voltage Rating; 5 Inch Diameter; 200 Kiloamp (AC), 100 Kiloamp (DC) Interrupting Rating; 3000 Amp Current Rating; Blade Terminal Type; Time Delay Characteristics; AMP-TRAP[R] Brand; RoHS Compliant; Mounting Type Bolt; Material Glass Melamine (Body), Silver Plated Copper (Terminal); Application Main, Feeder, Circuit Breaker, Loadcenter, Panel Board, Switch Board, Metering Center; Applicable Standard IEC 269-2-1; A4BY Model
• Manufacturer: Mersen - Ferraz Shawmut
• Manufacturer Brand: Mersen - Ferraz Shawmut, Inc.
• Sub Category: UL Power Fuse
• Unspsc: 39121627
• UPC 12 Digit: 782001939267
• SKU Name: frz a4by3000
