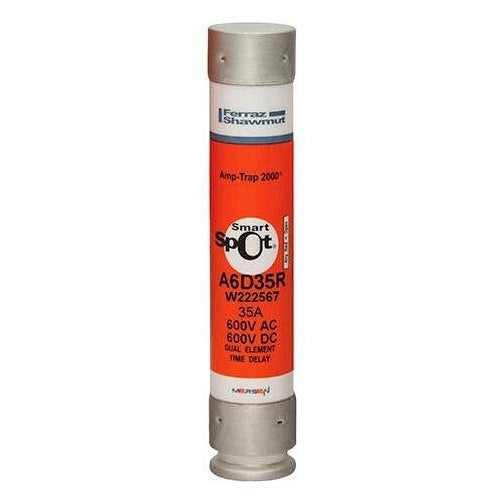

Mersen-Ferraz A6D35R 600V RK1 Time Delay Fuse

Overview

Mersen-Ferraz A6D35R 600V RK1 Time Delay Fuse

Product Specifications

• UPC: 78200199200
• Terminal Type: Ferrule
• Diameter: 1-1/16 Inch
• Length: 5-1/2 Inch
• Approval: UL 248/248-12, CSA C22.2
• Additional Information: Mounting Type Clip; Material Fiberglass (Body), Tin Plated Copper (Terminal); Application Motor, Safety Switch, Transformer, Disconnect, Control Panel, All General Purpose Circuit
• Catalog Number: A6D35R
• Brand Name: Amp-Trap 2000[R], SmartSpot[R]
• Model: A6D-R
• Type: Class RK1
• Characteristics: Time Delay
• Voltage Rating: 600 Volt AC/DC
• Current Rating: 35 Amp
• Interrupting Rating: 200 Kiloamp (AC), 100 Kiloamp (DC)
• Catalog Description: FUSE A6D-R - CLASS RK1 - TIME-DELAY 600VAC 600VDC 35A FERRULE SMARTSPOT AMP-TRAP 2000
• Category: Current Limiting Fuses
• Full Technical Description: Class RK1 Type; 5-1/2 Inch; UL 248/248-12, CSA C22.2 Approval; 600 Volt AC/DC Voltage Rating; 1-1/16 Inch Diameter; 200 Kiloamp (AC), 100 Kiloamp (DC) Interrupting Rating; 35 Amp Current Rating; Ferrule Terminal Type; Time Delay Characteristics; Amp-Trap 2000[R], SMARTSPOT[R] Brand; Mounting Type Clip; Material Fiberglass (Body), Tin Plated Copper (Terminal); Application Motor, Safety Switch, Transformer, Disconnect, Control Panel, All General Purpose Circuit; A6D-R Model
• Manufacturer: Mersen - Ferraz Shawmut
• Manufacturer Brand: Mersen - Ferraz Shawmut, Inc.
• Sub Category: UL Power Fuse
• Unspsc: 39121604
• UPC 12 Digit: 782001992002
• SKU Name: frz a6d35r
