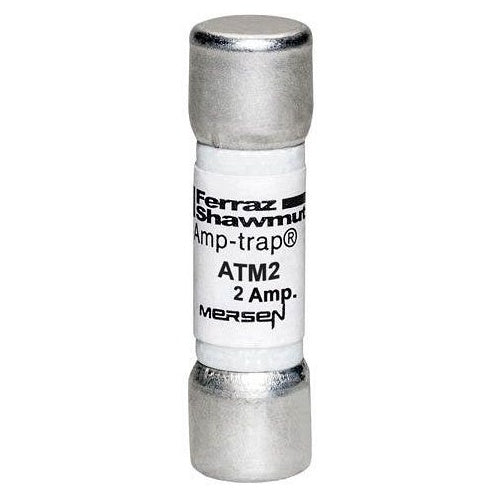

Mersen-Ferraz ATM2 600V Midget Fuse

Product Specifications

• UPC: 78200190078
• Diameter: 0.41 Inch
• Length: 1.5 Inch
• Approval: UL 248-14, CSA C22.2
• Additional Information: RoHS Compliant; Mounting Type Clip; Material Glass Melamine Laminate (Body), Tin Plated Copper (Contact); Application Supplemental Protection of Small Motor and Transformer
• Catalog Number: ATM2
• Brand Name: Amp-Trap[R]
• Model: ATM
• Characteristics: Fast Acting
• Voltage Rating: 600 Volt AC/DC
• Current Rating: 2 Amp
• Interrupting Rating: 100 Kiloamp (AC/DC)
• Terminal Type: Ferrule
• Catalog Description: FUSE ATM - MIDGET - FAST-ACTING 600VAC 600VDC 2A FERRULE AMP-TRAP
• Category: Small Dimension Fuses
• Full Technical Description: 1.5 Inch; UL 248-14, CSA C22.2 Approval; 600 Volt AC/DC Voltage Rating; 0.41 Inch Diameter; 100 Kiloamp (AC/DC) Interrupting Rating; 2 Amp Current Rating; Ferrule Terminal Type; Fast Acting Characteristics; AMP-TRAP[R] Brand; RoHS Compliant; Mounting Type Clip; Material Glass Melamine Laminate (Body), Tin Plated Copper (Contact); Application Supplemental Protection of Small Motor and Transformer; ATM Model
• Manufacturer: Mersen - Ferraz Shawmut
• Manufacturer Brand: Mersen - Ferraz Shawmut, Inc.
• Sub Category: Midget Fuse
• Unspsc: 39121609
• UPC 12 Digit: 782001900786
• SKU Name: frz atm2
