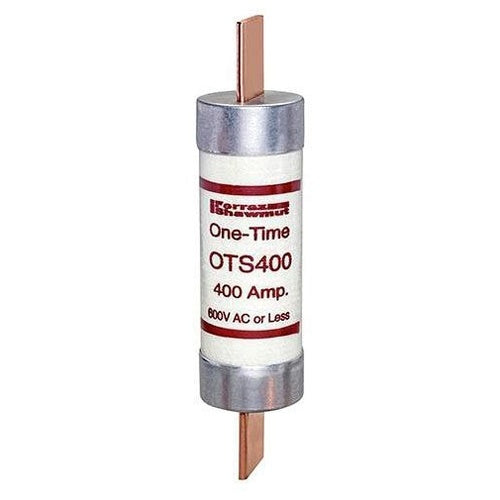

Mersen-Ferraz OTS400 600V K5 Fuse

Overview

Mersen-Ferraz OTS400 600V K5 Fuse

Product Specifications

• UPC: 78200170106
• Diameter: 2-9/16 Inch
• Length: 11-5/8 Inch
• Approval: UL 248-9, CSA C22.2
• Additional Information: Application Feeders, Resistive Heating, Residential and Small Commercial Installations; Body Material Paper; Body Style Cylindrical; Mounting Type Clip
• Catalog Number: OTS400
• Model: OTS
• Type: Class K5
• Characteristics: Fast Acting, One Time
• Voltage Rating: 600 Volt AC, 300 Volt DC
• Current Rating: 400 Amp
• Interrupting Rating: 50 Kiloamp (AC), 20 Kiloamp (DC)
• Terminal Type: Ferrule
• Catalog Description: FUSE OTS - CLASS K5 - FAST-ACTING 600VAC 300VDC 400A BLADE AMP-TRAP
• Category: Renewable & Non-Renewable Fuses
• Full Technical Description: Class K5 Type; 11-5/8 Inch; UL 248-9, CSA C22.2 Approval; 600 Volt AC, 300 Volt DC Voltage Rating; 2-9/16 Inch Diameter; 50 Kiloamp (AC), 20 Kiloamp (DC) Interrupting Rating; 400 Amp Current Rating; Ferrule Terminal Type; Fast Acting, One Time Characteristics; AMP-TRAP[R] Brand; Application Feeders, Resistive Heating, Residential and Small Commercial Installations; Body Material Paper; Body Style Cylindrical; Mounting Type Clip; OTS Model
• Manufacturer: Mersen - Ferraz Shawmut
• Manufacturer Brand: Mersen - Ferraz Shawmut, Inc.
• Sub Category: UL Power Fuse
• Unspsc: 39121627
• UPC 12 Digit: 782001701062
• SKU Name: frz ots400
