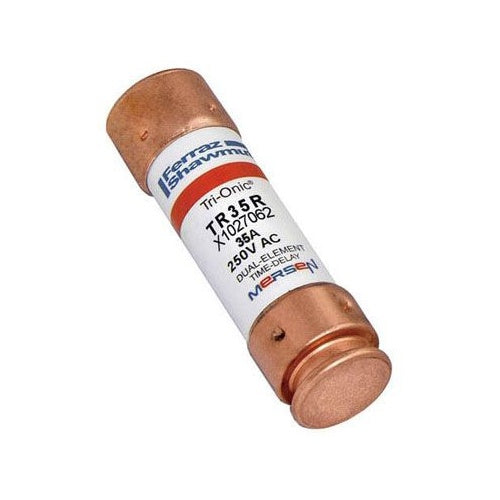

Mersen-Ferraz TR35R 35A 250V Rk5 Time Delay Fuse

Product Specifications

• UPC: 78200174790
• Terminal Type: Ferrule
• Diameter: 13/16 Inch
• Length: 3 Inch
• Approval: UL 248-12, CSA C22.2
• Additional Information: RoHS Compliant; Mounting Type Clip; Material Fiberglass (Body), Copper (Terminal), High Grade Silica (Filler); Body Style Rejection; Application Motor Circuit, Mains, Feeder, Branch Circuit, Transformer, Service Entrance Equipment, General Purpose Equipme
• Catalog Number: TR35R
• Brand Name: Tri-Onic[R]
• Model: TR-R
• Type: Class RK5
• Characteristics: Time Delay, Dual Element
• Voltage Rating: 250 Volt AC/DC
• Current Rating: 35 Amp
• Interrupting Rating: 200 Kiloamp (AC), 20 Kiloamp (DC)
• Catalog Description: FUSE TR-R - CLASS RK5 - TIME-DELAY 250VAC 250VDC 35A FERRULE TRI-ONIC
• Category: Current Limiting Fuses
• Full Technical Description: Class RK5 Type; 3 Inch; UL 248-12, CSA C22.2 Approval; 250 Volt AC/DC Voltage Rating; 13/16 Inch Diameter; 200 Kiloamp (AC), 20 Kiloamp (DC) Interrupting Rating; 35 Amp Current Rating; Ferrule Terminal Type; Time Delay, Dual Element Characteristics; TRI-ONIC[R] Brand; RoHS Compliant; Mounting Type Clip; Material Fiberglass (Body), Copper (Terminal), High Grade Silica (Filler); Body Style Rejection; Application Motor Circuit, Mains, Feeder, Branch Circuit, Transformer, Service Entrance Equipment, General Purpose Equipment; TR-R Model
• Manufacturer: Mersen - Ferraz Shawmut
• Manufacturer Brand: Mersen - Ferraz Shawmut, Inc.
• Sub Category: UL Power Fuse
• Unspsc: 39121604
• UPC 12 Digit: 782001747909
• SKU Name: frz tr35r
