Overview

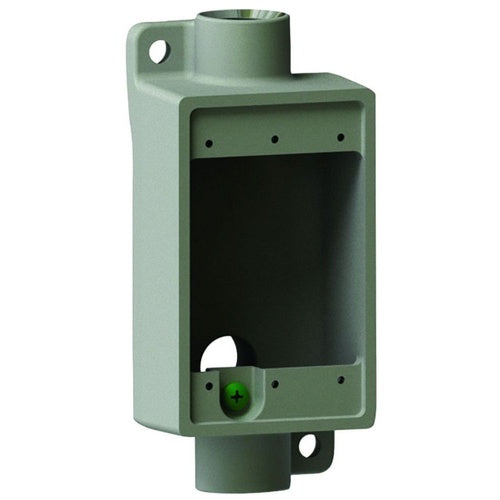

Killark FSCA-2 3/4" FS Box Shallow"Ca" Aluminum

Product Specifications

• UPC: 78393619234
• Hub Location: (1) Back, (1) Each End
• Hub Size: 3/4 Inch
• Material: Electrostatically Applied Powder Coated Copper Free Aluminum
• Shape: Shallow
• Configuration Type: FSCA
• Approval: UL 514A, CSA C22.2, FS W-C-586D
• Additional Information: Applicable Standard NEMA FB-1; Hub Type Tapered Threaded; Includes Internal Grounding Screw
• Catalog Number: FSCA-2
• Model: FSCA
• Height: 4-5/8 Inch
• Width: 2-7/8 Inch
• Depth: 2 Inch
• Capacity: 18 Cu Inch
• Number Of Gangs: 1
• Number Of Hubs: 3
• Catalog Description: 3/4"ALUMINUM, FSCA TYPE SHALLOW DEVICE BOX
• Category: Steel Fs & Fd Type Boxes & Covers
• Full Technical Description: Electrostatically Applied Powder Coated Copper Free Aluminum Material; 2-7/8 Inch; 4-5/8 Inch; 2 Inch; Shallow Shape; 3/4 Inch Hub Size; 3 Hub(S); 1 Gang(S); UL 514A, CSA C22.2, FS W-C-586D Approval; 18 Cu Inch Capacity; (1) Back, (1) Each End Hub Location; Fsca Configuration Type; Applicable Standard NEMA FB-1; Hub Type Tapered Threaded; Includes Internal Grounding Screw; FSCA Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Cast Device Box
• Unspsc: 39121308
• UPC 12 Digit: 783936192345
• SKU Name: fsca2 killark

Resources

• Technical Drawing
• Manufacturer Spec Sheet
