Overview

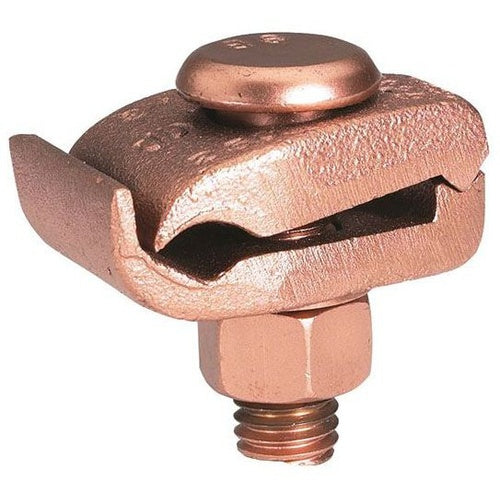

Burndy GBL30 Ground Clamp

Product Specifications

• UPC: 78181000184
• Additional Information: RoHS Compatible; Width 1.5 Inch; Installation Torque 480 Lb-Inch
• Catalog Number: GBL30
• Model: GB
• Conductor Size: 4 AWG Solid to 300 KCMIL
• Bolt Size: 1/2 Inch
• Bar Thickness: 1/4 Inch
• Height: 2.32 Inch
• Material: Cast Copper Alloy Body, Durium Bolt/Nut/Lockwasher
• Used On: Cable to Bar, Direct Burial
• Catalog Description: CAST COPPER ALLOY GROUND CONNECTOR, 4 SOL. - 300, 48 MM L, 38 MM W, CABLE TO BAR.
• Category: Large Terminals & Connectors
• Full Technical Description: Cast Copper Alloy Body, Durium Bolt/Nut/Lockwasher Material; 2.32 Inch; Cable to Bar, Direct Burial Used on; 4 AWG Solid to 300 kcmil Conductor Size; 1/2 Inch Bolt Size; 1/4 Inch Bar Thickness; RoHS Compatible; Width 1.5 Inch; Installation Torque 480 lb-Inch; GB Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Bar To Flat Surface Clamp
• Unspsc: 39121408
• UPC 12 Digit: 781810001844
• SKU Name: gbl30 burndy

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
