Overview

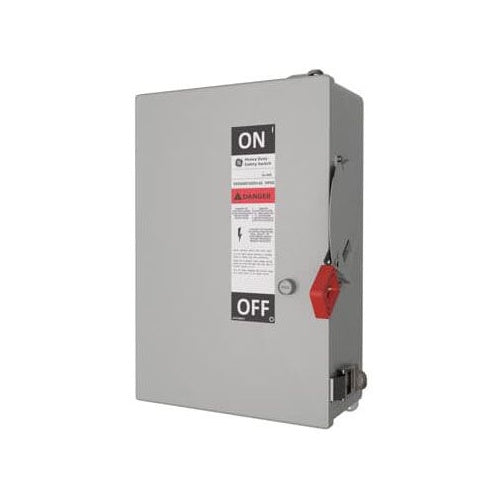

Spec-SetterTM TH3362R TH Series Fusible Heavy Duty Safety Switch, 600 V AC, 60 A, 15 hp Standard Fuse/50 hp Time Delay, 3 Poles

Product Specifications

• Catalog Number: TH3362R
• UPC: 783164009101
• Manufacturer Brand: GE
• UNSPSC: 39122205
• Features: Donut handle ideal for hook stick operation and accepts 3 padlocks in the off position; Direct drive, quick-make, quick-break mechanism "snaps" contacts open and closed providing positive on/off indication; Self-leveling, 3-point mounting system; Coin-proof, defeatable interlock; Visible confirmation of plated blade contact positions; Spring reinforced fuse clips assure reliable contact for cool operation; Suitable for class H, K, J or R fuses, where applicable; With class R fuses or J fuses, 30 to 600 A switches have UL listed short circuit rating of 200000 rms symmetrical A; UL listed as service entrance equipment when installed in accordance with the national electric code; Switches rated 800 to 1200 A use class L fuses and have a UL listed short circuit rating of 10000 rms symmetrical A
• Actuator Type: Handle
• Amperage Rating: 60 A
• Country of Origin: United Kingdom
• Dimensions: 22 in H x 9.2 in W x 4.8 in D
• Enclosure Type: NEMA 3R
• Frequency Rating: 50/60 Hz
• Horsepower: 15 hp Standard Fuse/50 hp Time Delay
• Mounting Type: Surface
• Number of Poles: 3
• Number of Wires: 3
• Phase: 3
• Series: TH Series
• Short Circuit Current Rating: 200 kA
• Temperature Rating: 60/75 deg C
• Type: Fusible Heavy Duty
• Voltage Rating: 600 V AC | 600 VAC
