Overview

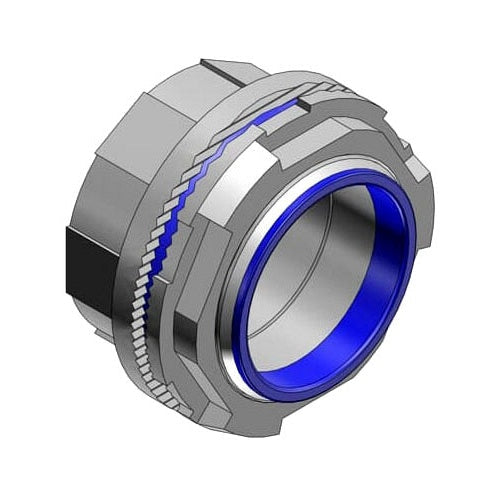

T&B H350CP 3-1/2" Chrome Plated Hub

Product Specifications

• UPC: 78621000195
• Approval: UL, CSA
• Used On: Rigid Conduit/IMC
• Additional Information: Enclosure NEMA 4X; Maximum Panel Thickness 1/4 Inch; Temperature Rating 105 Deg C
• Catalog Number: H350CP
• Type: Bulkhead, Tapered Female Threaded
• Throat Type: Thermoplastic Insulated
• Trade Size: 3-1/2 Inch
• Size: 5 Inch Dia x 2-23/32 Inch L
• Constructional Feature: Dusttight, Watertight, Hazardous Location
• Ground Type: Locknut Bonding Screw
• Material: Chrome Plated Zinc Hub/Locknut, Nitrile Sealing Ring
• Catalog Description: 3-1/2 INCH ZINC HUB CONNECTOR WITH CHROME PLATING, THERMOPLASTIC INSULATING THROAT, SEALING RING NITRILE (BUNA-N) FOR USE WITH RIGID/IMC CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Bulkhead, Tapered Female Threaded Type; Chrome Plated Zinc Hub/Locknut, Nitrile Sealing Ring Material; 5 Inch Dia X 2-23/32 Inch L Size; Rigid Conduit/Imc Used on; UL, CSA Approval; Locknut Bonding Screw; 3-1/2 Inch Trade Size; Dusttight, Watertight, Hazardous Location; Thermoplastic Insulated Throat Type; BULLET[R] Brand; Enclosure NEMA 4X; Maximum Panel Thickness 1/4 Inch; Temperature Rating 105 Deg C
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Rigid/EMT Conduit Hub
• Unspsc: 39121311
• UPC 12 Digit: 786210001951
• SKU Name: h350cp t & b

Resources

• Manufacturer Spec Sheet
