Product information
Overview

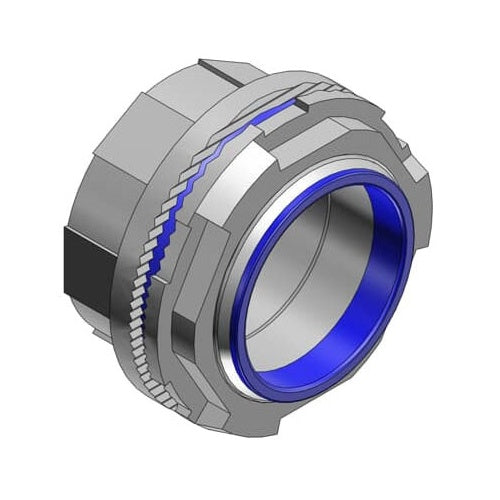

T&B H400-TB 4" Conduit Fitting
Product Specifications
- UPC: 78621089951
- Approval: UL, CSA
- Used On: Rigid/IMC
- Additional Information: Maximum Panel Thickness 1/4 Inch; Temperature Rating 105 Deg C
- Catalog Number: H400-TB
- Brand Name: T&B
- Type: Tapered Female Threaded, Bulkhead
- Throat Type: Thermoplastic Insulated
- Trade Size: 4 Inch
- Size: 5-1/2 Inch Diameter x 2-23/32 Inch Length
- Constructional Feature: NEMA 3R/4/13, Water Tight, Dust Tight
- Material: Die-Cast Zinc (Hub/Locknut), Nitrile (Sealing Ring)
- Catalog Description: 4 INCH ZINC HUB CONNECTOR WITH THERMOPLASTIC INSULATING THROAT, SEALING RING NITRILE (BUNA-N) FOR USE WITH RIGID/IMC CONDUIT
- Category: Rigid Conduit Fittings - Steel
- Full Technical Description: Tapered Female Threaded, Bulkhead Type; Die-Cast Zinc (Hub/Locknut), Nitrile (Sealing Ring) Material; 5-1/2 Inch Diameter X 2-23/32 Inch Length Size; Rigid/Imc Used on; UL, CSA Approval; 4 Inch Trade Size; NEMA 3R/4/13, Water Tight, Dust Tight; Thermoplastic Insulated Throat Type; Bullet [R] Brand; Maximum Panel Thickness 1/4 Inch; Temperature Rating 105 Deg C
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Rigid/EMT Conduit Hub
- Unspsc: 39121311
- UPC 12 Digit: 786210899510
- SKU Name: h400tb
