Overview

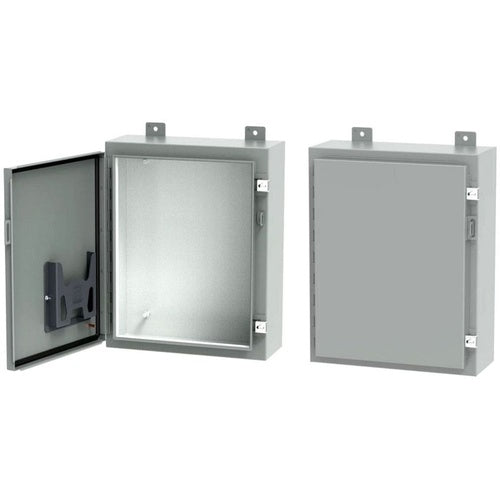

Hoffman A242006LP Wall-Mount Type 12/13 Enclosure 24.00X20.00X6.00 Steel

Product Specifications

• Full Technical Description: 1-Door Type; Mild Steel Material; White Inside/Ansi 61 Gray Outside (Body), ANSI 61 Gray (Door) Color; 20 Inch; 24 Inch; 6 Inch; UL 508A, CUL, CSA C22.2 Approval; Wall, External Welded-on Bracket Mounting; NEMA 12/13, IP65 Enclosure; Continuous Hinged, (2) Screw-Down Door Clamp, Heavy Gauge Continuous Hinge Pin, Seamless Foam-in-Place Gasketed, Padlockable Hasp and Staple Cover Type; 16 Gauge Material Specification; A24P20, A24P20G Back Panel; Rohs/Reach Compliant; Includes Small High Impact Thermoplastic Data Pocket; Applicable Standard IEC 60529; A12 Model
• Manufacturer: NVENT HOFFMAN
• Sub Category: Multipurpose Wall Mount Enclosure
• Unspsc: 39121324
• UPC 12 Digit: 783510280703
• SKU Name: hoff a242006lp

Resources

• Manufacturer Spec Sheet
