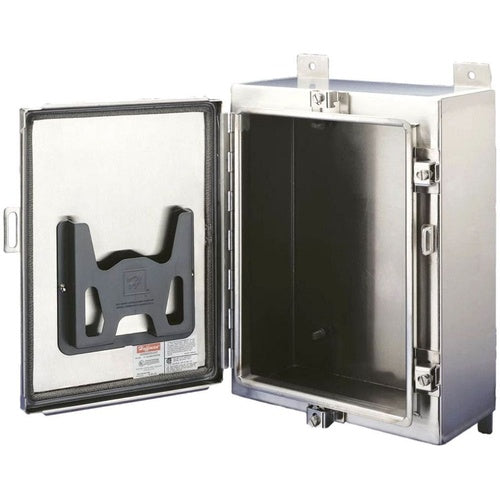

Hoffman A483608LPEMCSS Wall-Mount Emc Enclosure 48.00X36.00X8.00 Stainless Steel Type 304

Overview

Hoffman A483608LPEMCSS Wall-Mount Emc Enclosure 48.00X36.00X8.00 Stainless Steel Type 304

Product Specifications

• Full Technical Description: One Door Type; 304 Stainless Steel Material; Smooth Brushed Finish; 36 Inch; 36 Width in Inch; 48 Inch; 48 Height in Inch; 8 Inch; 1219.2 Height in mm; UL 508, CSA, JIC Approval; Wall Mounting; NEMA 3/4/4X/12/13, IP66 Enclosure; Continuous Hinge With Removable Pin, Foam Gasketed, Padlockable Hasp and Staple Cover Type; 14 Gauge Material Specification; Indoor/Outdoor Service Type; A-48P36G, A-48P36SS6 Back Panel; HOFFMAN[R] Brand; Applicable Standard IEC 60529; Application Electrical Component; Environmental Conditions Corrosion Resistant, Water, Wet; Inclusion (1) Body Stiffener, (8) Clamp, Thermoplastic Data Pocket; Panel Material Steel (A-48P36G), 316 Stainless Steel (A-48P3; Height in Inch - Uom in; Height in mm - Uom mm; Width in Inch - Uom in; EMC Model
• Manufacturer: NVENT HOFFMAN
• Sub Category: Multipurpose Wall Mount Enclosure
• Unspsc: 39121301
• UPC 12 Digit: 783510259198
• SKU Name: hoff a483608lpemcss

Resources

• Manufacturer Spec Sheet
