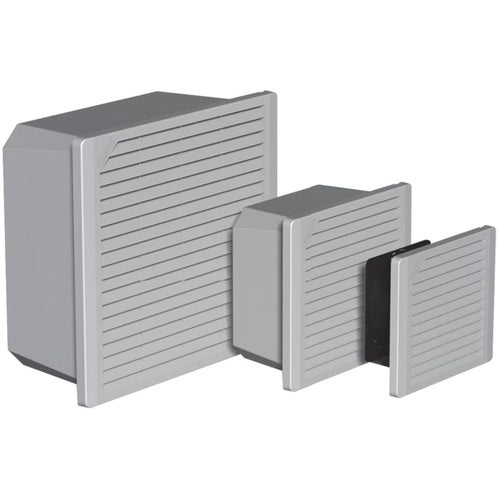

Hoffman TFP102 Cooling Fan Package, 10" 230V 50/60Hz

Product Specifications

• Full Technical Description: Enclosure Type; 12.99 Inch Body Length; 11.81 Inch Body Width; 230 Volt Max. AC Voltage Rating; 50/60 Hertz Frequency Rating; UL 508A, CSA, CE Approval; 230 Volt AC Voltage Rating; 0.29 Amp at 50 Hertz, 0.35 Amp at 60 Hertz Current Rating; Molded Polycarbonate Body Material; 64 Watt at 50 Hertz, 80 Watt at 60 Hertz Power Rating; 158 Deg F Operating Temperature; 180 CFM at 50 Hertz, 215 CFM at 60 Hertz Air Flow Rate; 5.25 Inch Body Depth; Black ABS Plastic Grille; Washable Foam Filter; RoHS Compliant; Nominal Size 10 Inch; Sil Noise 54 Decibel at 50 Hertz, 61 Decibel at 60 Hertz; D85 Model
• Manufacturer: NVENT HOFFMAN
• Sub Category: Environmental Control Fan
• Unspsc: 40101604
• UPC 12 Digit: 783510413996
• SKU Name: hoff tfp102

Resources

• Manufacturer Spec Sheet
