Overview

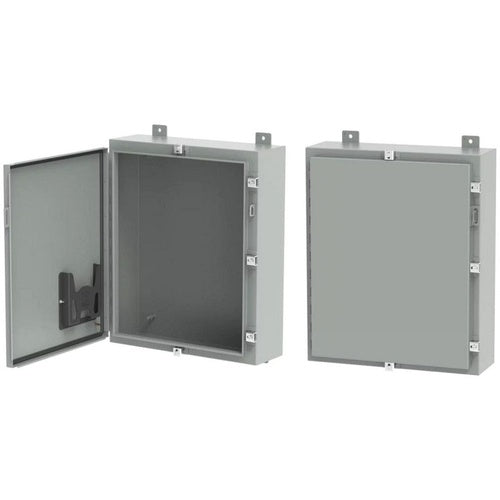

Hoffman A24H16ALP Continuous Hinge with Clamps, Type 4, 24" x 16" x 6", Gray, Steel

Product Specifications

• Catalog Number: A24H16ALP
• UPC: 783510243005
• Manufacturer: Hoffman Engineering
• Applications: Single-Door Enclosures Feature a Hinged Door with Clamps on Three Sides to Create a Secure Seal in Indoor or Outdoor Environments, the Gray Polyester Powder Finish Inside and Out Provides Enhanced Corrosion Protection in Outdoor Applications
• Body Gauge: 16
• Color Coding: ANSI 61
• Material: Steel
• Mounting Type: Wall
• Size: 24.00x16.00x6.00 in
• Standard: 12,13,4,And 13,CSA,CUL Listed Per CSA C22.2 No. 94,File No. 42186: Type 4 And 12,File No. E61997,IEC 60529,IP66,NEMA/EEMAC Type 3,Type 4,UL 508A Listed
• Type: Single Door, Five Lock
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• Color: Gray
• Finish: Powder Coated
• MDM Pkg GTiN: 00783510243005
• Weight: 32 lb
• Depth: 152 mm
• Height: 610 mm
• Length: 29-1/4 Inch
• Thickness: 1.9 mm
• Width: 406 mm
