Overview

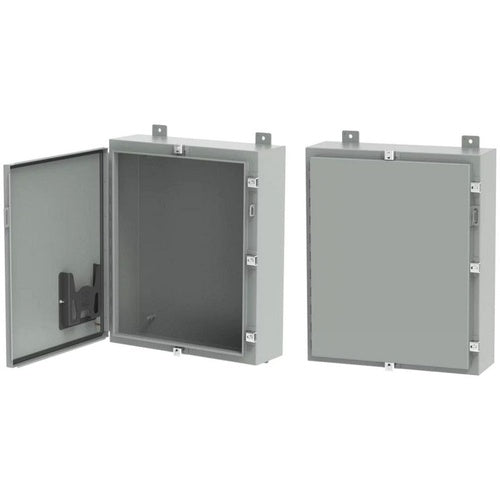

nVent HOFFMAN A48H36BLP 48 x 36 x 8-Inch Steel Continuous-Hinge Enclosure, Type 4

Product Specifications

• Catalog Number: A48H36BLP
• Full Technical Description: product type: continuous-hinge wall-mount enclosure with clamps; series: A4; nominal dimensions: 48 inches high x 36 inches wide x 8 inches deep; material: mild steel; finish: gray polyester powder coating inside and outside; cover style: solid hinged door; closure method: stainless steel screw-down clamps on three sides; hinge: removable heavy-gauge stainless steel continuous hinge pin; construction: continuously welded seams ground smooth; mounting: external wall-mounting brackets; gasket: seamless foam-in-place gasket; security: hasp and staple for padlocking; included features: high-impact thermoplastic data pocket, collar studs for optional panel mounting, and bonding provision on door; approvals: UL 508A Listed and cUL Listed; enclosure ratings: UL Type 4, 12, and 13; NEMA/EEMAC Type 3, 4, 12, and 13; IEC 60529 IP66; UL file number: E61997; application: protecting electrical, pneumatic, control, and instrumentation equipment from windblown dust, rain, splashing water, and hose-directed water
• Manufacturer: nVent
• Manufacturer Brand: nVent HOFFMAN
• Unspsc: 39121301
