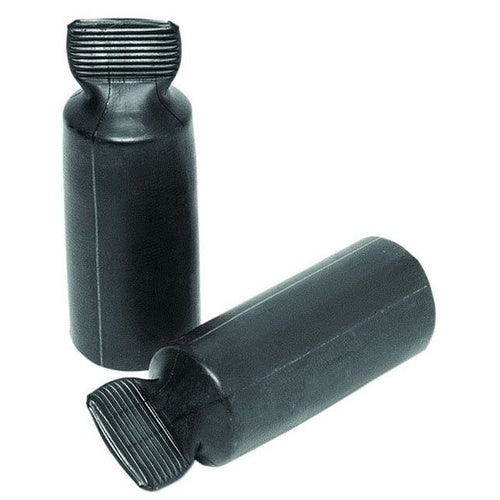

Burndy HSIC10500FR Heat Shrink End Cap

Overview

Burndy HSIC10500FR Heat Shrink End Cap

Product Specifications

• UPC: 78181026655
• Maximum Recovered Diameter: 0.35 Inch
• Recovered Wall Thickness: 0.12 Inch
• Length: 4 Inch (Expanded), 3 Inch (Recoverable)
• Shrink Ratio: 3:1
• Material: Polyolefin
• Approval: UL
• Additional Information: Applicable Standard ANSI-C119.1; Constructional Feature Weather and Moisture Resistant
• Catalog Number: HSIC10500FR
• Model: HSIC-FR
• Type: Cable End Cap
• Construction: Heat Shrink
• Voltage Rating: 600 V
• Cable Type: Aluminum/Steel/Polyetylene/EPR/PVC
• Conductor Size: 1/0 AWG to 500 KCMIL (Code), 1 AWG to 313.1 KCMIL (Flex)
• Minimum Expanded Diameter: 1.1 Inch
• Catalog Description: HEAVY WALL CROSS-LINKED BLACK POLYOLEFIN HEAT SHRINKABLE END CAP, 1/0-500 KCMIL CODE, #1-313 KCMIL FLEX, 600 V, FIRE RETARDANT.
• Category: Large Terminals & Connectors
• Full Technical Description: Cable End Cap Type; Polyolefin Material; 4 Inch (Expanded), 3 Inch (Recoverable); 1.1 Inch min. Expanded Diameter; 0.35 Inch Max. Recovered Diameter; Aluminum/Steel/Polyetylene/Epr/Pvc Cable Type; UL Approval; 600 V Voltage Rating; Heat Shrink Construction; 1/0 AWG to 500 kcmil (Code), 1 AWG to 313.1 kcmil (Flex) Conductor Size; 3:1 Shrink Ratio; 0.12 Inch Recovered Wall Thickness; Heat Shrink Brand; Applicable Standard ANSI-C119.1; Constructional Feature Weather and Moisture Resistant; HSIC-FR Model
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Sub Category: Cable End Seal/Cap
• Unspsc: 39121723
• UPC 12 Digit: 781810266557
• SKU Name: hsic10500fr burndy
