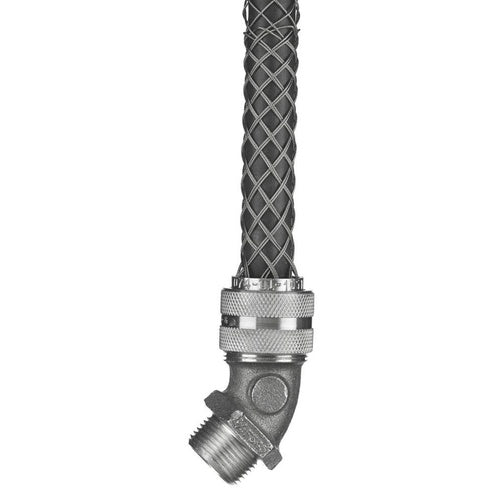

Hubbell 074011057 45D Male Deluxe Cord Grip, .75-.87", 1" W/Mesh

Overview

Hubbell 074011057 45D Male Deluxe Cord Grip, .75-.87", 1" W/Mesh

Product Specifications

• UPC: 78358532311
• Approval: UL, CSA
• Additional Information: Connector Size 2.6 Inch Dia x 2.8 Inch L; Temperature Rating -30 to 225 Deg F
• Catalog Number: 074011057
• Connector Type: 45 Deg Male
• Connector Material: Aluminum
• Mesh Type: Double Weave
• Mesh Material: Stainless Steel
• Thread Size: 1 Inch NPT
• Cord Size: 0.75 to 0.875 Inch
• Application: Hazardous Location
• Catalog Description: KELLEMS WIRE MANAGEMENT, DELUXE CORD GRIPS, 45 DEGREE MALE, .750-.875", 1" WITH MESH
• Category: Cable & Cord Grips
• Full Technical Description: UL, CSA Approval; Hazardous Location Application; 45 Deg Male Connector Type; 1 Inch NPT Thread Size; 0.75 to 0.875 Inch Cord Size; Stainless Steel Mesh Material; Double Weave Mesh Type; Aluminum Connector Material; Connector Size 2.6 Inch Dia X 2.8 Inch L; Temperature Rating -30 to 225 Deg F
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Flexible Cord/Cable Connector with Grip
• Unspsc: 39121431
• UPC 12 Digit: 783585323114
• SKU Name: hubw 074011057
