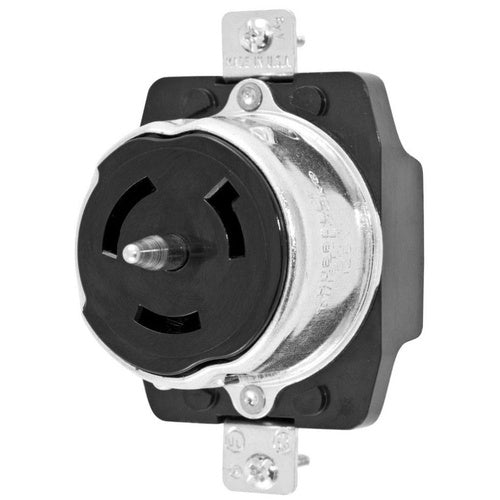

Hubbell CS6370 Locking Receptacle-2P3W50A125

Overview

Hubbell CS6370 Locking Receptacle-2P3W50A125

Product Specifications

• UPC: 78358587130
• Number Of Poles: 2
• Number Of Wires: 3
• Ground Type: Grounding
• Face Outer Diameter: 2.11 Inch
• Material: Phenolic
• Color: Black
• Approval: UL 94/498, CSA C22.2
• Additional Information: Temperature Rating -40 to 60 Deg C
• Catalog Number: CS6370
• Brand Name: Twist-Lock[R]
• Model: CS
• Type: Single Locking
• Constructional Feature: Impact Resistant, Heat Resistant
• Configuration: Non-NEMA Locking
• Voltage Rating: 125 V
• Current Rating: 50 Ampere
• Catalog Description: TWIST-LOCK INDUSTRIAL RECEPTACLE, 50A 125V, 2-POLE 3-WIRE GROUNDING, NON-NEMA, SCREW TERMINAL
• Category: Receptacles & Surge Protectors
• Full Technical Description: Single Locking Type; Phenolic Material; Black Color; Non-NEMA Locking Configuration; 3 Wire(S); UL 94/498, CSA C22.2 Approval; 125 V Voltage Rating; 50 Ampere Current Rating; Grounding; 2 Pole(S); Impact Resistant, Heat Resistant; 2.11 Inch Face Outer Diameter; TWIST-LOCK[R] Brand; Temperature Rating -40 to 60 Deg C; CS Model
• Manufacturer: HUBBELL WIRING DEVICE/KELLEMS
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585871301
• SKU Name: hubw cs6370
