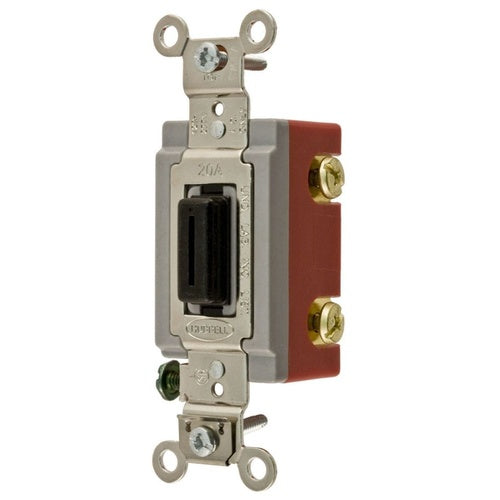

Hubbell HBL1222L Dp 20A Industrial Grade Locking Ac Switch

Overview

Hubbell HBL1222L Dp 20A Industrial Grade Locking Ac Switch

Product Specifications

• UPC: 78358543166
• Material: Thermoset (Body), Nylon (Toggle)
• Color: Black
• Wiring: Back, Side
• Size: 1.31 Inch W x 1.13 Inch D x 4.06 Inch H
• Application: Industrial
• Approval: UL, CSA
• Additional Information: Temperature Rating -40 to 75 Deg C; Includes Ground Screw
• Catalog Number: HBL1222L
• Brand Name: HBL[R]
• Model: HBL1222
• Type: Toggle, Keyed Locking
• Current Rating: 20 Ampere
• Voltage Rating: 120 to 277 VAC
• Power Rating: 1 HP at 120 V, 2 HP at 277 V
• Operation Type: Double Pole
• Catalog Description: SWITCHES AND LIGHTING CONTROLS,EXTRA HEAVY DUTY INDUSTRIAL GRADE, LOCKING TOGGLE SWITCHES, GENERAL PURPOSE AC, DOUBLE POLE, 20A 120/277V AC, BACK AND SIDE WIRED, BLACK KEY GUIDE
• Category: General Purpose Switches
• Full Technical Description: Toggle, Keyed Locking Type; Thermoset (Body), Nylon (Toggle) Material; 1.31 Inch W X 1.13 Inch D X 4.06 Inch H Size; Black Color; Double Pole Operation Type; UL, CSA Approval; Industrial Application; 120 to 277 VAC Voltage Rating; 20 Ampere Current Rating; 1 HP at 120 V, 2 HP at 277 V Power Rating; Back, Side Wiring; HBL[R] Brand; Temperature Rating -40 to 75 Deg C; Includes Ground Screw; HBL1222 Model
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Standard AC Switch
• Unspsc: 39122224
• UPC 12 Digit: 783585431666
• SKU Name: hubw hbl1222l
