Overview

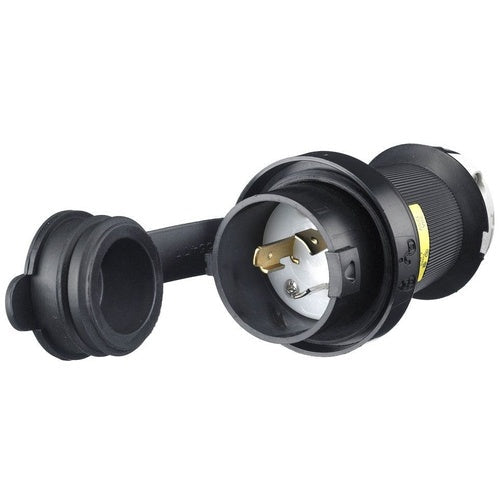

Hubbell HBL2311SW Locking Watertight Safety-Shroud Plug, 20A 125V, L5-20P

Product Specifications

• UPC: 78358523102
• Number Of Wires: 3
• Ground Type: Grounding
• Material: Valox Body/Clamp, Thermoplastic Polyester Interior
• Color: Black/White
• Cord Size: 0.36 to 0.93 Inch
• Approval: UL 498, CSA C22.2
• Additional Information: Wire Size 16 to 8 AWG (Stranded Copper); Enclosure Rating NEMA 4/4X/12, IP66; Blade Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596
• Catalog Number: HBL2311SW
• Brand Name: Wiring Device-Kellems
• Type: Polarized
• Constructional Feature: Impact Resistant, Water Tight
• Configuration: L5-20P
• Voltage Rating: 125 Volt AC
• Current Rating: 20 Amp
• Number Of Poles: 2
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, WATERTIGHT SAFETY-SHROUD, MALE PLUG, 20A, 125V AC, 2-POLE 3-WIRE GROUNDING, NEMA L5-20P, BLACK PBT HOUSING, WHITE PBT CLAMPS.
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Valox Body/Clamp, Thermoplastic Polyester Interior Material; Black/White Color; L5-20P Configuration; 3 Wire(S); UL 498, CSA C22.2 Approval; 125 Volt AC Voltage Rating; 20 Amp Current Rating; Grounding; 2 Pole(S); Impact Resistant, Water Tight; 0.36 to 0.93 Inch Cord Size; TWIST-LOCK[R], SAFETY-SHROUD[R] Brand; Wire Size 16 to 8 AWG (Stranded Copper); Enclosure Rating NEMA 4/4X/12, IP66; Blade Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Plug
• Unspsc: 39121402
• UPC 12 Digit: 783585231020
• SKU Name: hubw hbl2311sw
