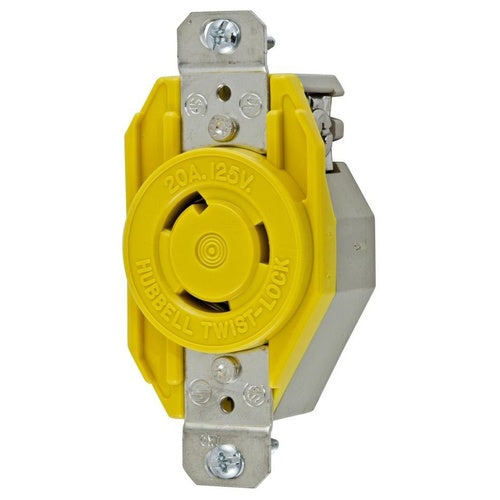

Hubbell HBL23CM10 Locking Receptacle

Overview

Hubbell HBL23CM10 Locking Receptacle

Product Specifications

• UPC: 78358580814
• Number Of Wires: 3
• Ground Type: Grounding
• Face Outer Diameter: 1.563 Inch
• Material: Nylon Face
• Color: Yellow
• Wiring: Back, Side
• Mounting: Flush/Screw Mount
• Approval: UL 94/498, CSA C22.2, Fed-Spec W-C-596
• Additional Information: Enclosure Rating IP20; Power Rating 3750 Watt; Wire Size 16 to 8 AWG; Temperature Rating -40 to 75 Deg C; Overall Dimension 3.28 Inch Length x 1.73 Inch Width x 3.28 Inch Height; Material Glass-Reinforced Thermoplastic Polyester (Base), Nickel Plated Bras
• Catalog Number: HBL23CM10
• Brand Name: Twist-Lock[R]
• Type: Single Locking
• Constructional Feature: Corrosion Resistant
• Configuration: L5-20R
• Voltage Rating: 125 Volt AC
• Current Rating: 20 Amp
• Number Of Poles: 2
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, CORROSION RESISTANT SINGLE FLUSH RECEPTACLE, 20A, 125V AC, 2 POLE, 3 WIRE GROUNDING, YELLOW
• Category: Receptacles & Surge Protectors
• Full Technical Description: Single Locking Type; Nylon Face Material; Yellow Color; L5-20R Configuration; 3 Wire(S); UL 94/498, CSA C22.2, Fed-Spec W-C-596 Approval; 125 Volt AC Voltage Rating; Flush/Screw Mount Mounting; 20 Amp Current Rating; Grounding; 2 Pole(S); Corrosion Resistant; Back, Side Wiring; 1.563 Inch Face Outer Diameter; TWIST-LOCK[R] Brand; Enclosure Rating IP20; Power Rating 3750 Watt; Wire Size 16 to 8 AWG; Temperature Rating -40 to 75 Deg C; Overall Dimension 3.28 Inch Length X 1.73 Inch Width X 3.28 Inch Height; Material Glass-Reinforced Thermoplastic Polyester (Base), Nickel Plated Brass (Contact), Bronze (#10 to 32 Terminal Screw), Nickel Plated Brass (Mounting Strap)
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585808147
• SKU Name: hubw hbl23cm10
