Product information
Overview

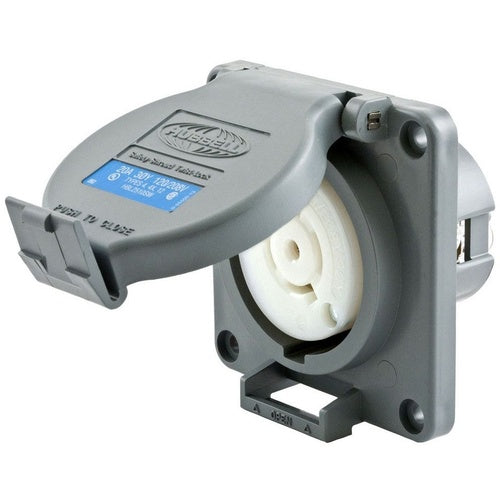

Hubbell HBL2510SW Locking Watertight Safety-Shroud Receptacle,20A 120/208V,L21-20R
Product Specifications
- UPC: 78358523150
- Number Of Wires: 5
- Ground Type: Grounding
- Material: Valox
- Color: Gray
- Wiring: Back
- Approval: UL 94/498, CSA C22.2
- Additional Information: Enclosure NEMA 4/4X/12, IP66; Temperature Rating -40 to 60 Deg C
- Catalog Number: HBL2510SW
- Brand Name: Twist-Lock[R], Safety-Shroud[R]
- Model: HBL
- Type: Single Locking
- Configuration: L21-20R
- Voltage Rating: 120/208 VAC Star 3-Phase
- Current Rating: 20 Ampere
- Number Of Poles: 4
- Catalog Description: LOCKING DEVICES, TWIST-LOCK, WATERTIGHT SAFETY-SHROUD, RECEPTACLE, 20A 3-PHASE WYE 120/208V AC, 4-POLE 5-WIRE GROUNDING, NEMA L21-20R, SCREW TERMINAL, PBT HOUSING AND FLANGE, GRAY.
- Category: Receptacles & Surge Protectors
- Full Technical Description: Single Locking Type; Valox Material; Gray Color; L21-20R Configuration; 5 Wire(S); UL 94/498, CSA C22.2 Approval; 120/208 VAC Star 3-Phase Voltage Rating; 20 Ampere Current Rating; Grounding; 4 Pole(S); Back Wiring; TWIST-LOCK[R], SAFETY-SHROUD[R] Brand; Enclosure NEMA 4/4X/12, IP66; Temperature Rating -40 to 60 Deg C; HBL Model
- Manufacturer: Hubbell Wiring Devices-Kellems
- Manufacturer Brand: Hubbell Wiring Devices-Kellems
- Sub Category: Locking Device Receptacle
- Unspsc: 39121406
- UPC 12 Digit: 783585231501
- SKU Name: hubw hbl2510sw
