Product information
Overview

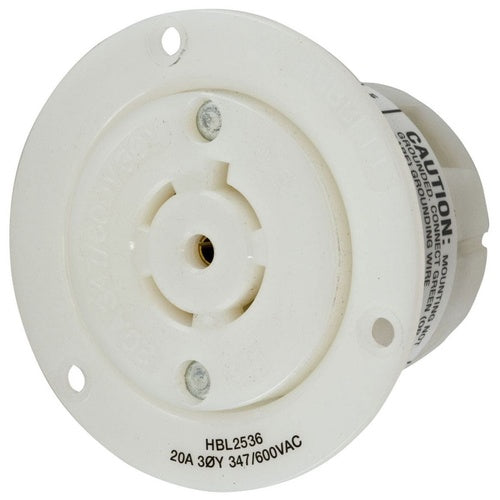

Hubbell HBL2536 Locking Flanged Outlet-Nm L23-20R
Product Specifications
- UPC: 78358503870
- Material: Nylon Casing
- Color: White
- Approval: UL 94/498, CSA C22.2
- Additional Information: Enclosure IP20; Operating Temperature -40 to 75 Deg C
- Catalog Number: HBL2536
- Brand Name: Twist-Lock[R], Insulgrip[R]
- Configuration: L23-20R
- Voltage Rating: 347/600 VAC Star 3-Phase
- Current Rating: 20 Ampere
- Number Of Poles: 4
- Number Of Wires: 5
- Ground Type: Grounding
- Catalog Description: LOCKING DEVICES, TWIST-LOCK, INDUSTRIAL, INSULGRIP FLANGED RECEPTACLE, 20A 3-PHASE WYE 20A 347/600V AC, 4-POLE 5-WIRE GROUNDING, NEMA L23-20R, SCREW TERMINAL, NYLON CASING, BACK WIRED, WHITE.
- Category: Receptacles & Surge Protectors
- Full Technical Description: Nylon Casing Material; White Color; L23-20R Configuration; 5 Wire(S); UL 94/498, CSA C22.2 Approval; 347/600 VAC Star 3-Phase Voltage Rating; 20 Ampere Current Rating; Grounding; 4 Pole(S); TWIST-LOCK[R], INSULGRIP[R] Brand; Enclosure IP20; Operating Temperature -40 to 75 Deg C
- Manufacturer: Hubbell Wiring Devices-Kellems
- Manufacturer Brand: Hubbell Wiring Devices-Kellems
- Sub Category: Locking Flanged Receptacle Outlet
- Unspsc: 39121406
- UPC 12 Digit: 783585038704
- SKU Name: hubw hbl2536
