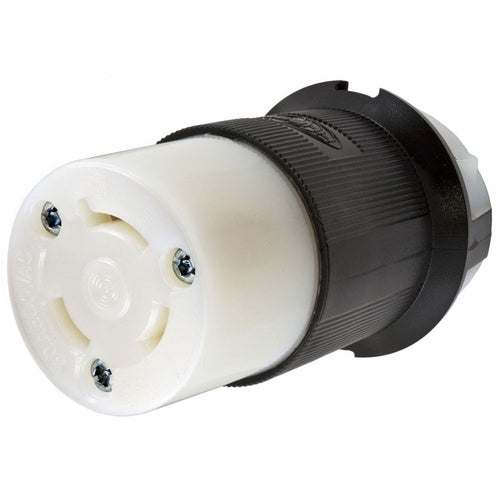

Hubbell HBL2653 Grounding Locking Connector-Nm L9-30R

Overview

Hubbell HBL2653 Grounding Locking Connector-Nm L9-30R

Product Specifications

• UPC: 78358503905
• Number Of Poles: 2
• Number Of Wires: 3
• Ground Type: Grounding
• Material: Nylon
• Color: Black/White
• Cord Size: 0.36 to 0.93 Inch
• Approval: UL 94/498, CSA C22.2
• Additional Information: Contact Material Brass; Enclosure IP20; Temperature Rating -40 to 60 Deg C
• Catalog Number: HBL2653
• Brand Name: Twist-Lock[R]
• Model: HBL
• Type: Polarized
• Constructional Feature: Chemical Resistant
• Configuration: L9-30R
• Voltage Rating: 600 VAC
• Current Rating: 30 Ampere
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, INDUSTRIAL, FEMALE CONNECTOR BODY, 30A 600V AC, 2-POLE 3-WIRE GROUNDING, L9-30R, SCREW TERMINAL, BLACK AND WHITE.
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Nylon Material; Black/White Color; L9-30R Configuration; 3 Wire(S); UL 94/498, CSA C22.2 Approval; 600 VAC Voltage Rating; 30 Ampere Current Rating; Grounding; 2 Pole(S); Chemical Resistant; 0.36 to 0.93 Inch Cord Size; TWIST-LOCK[R], INSULGRIP[R] Brand; Contact Material Brass; Enclosure IP20; Temperature Rating -40 to 60 Deg C; HBL Model
• Manufacturer: HUBBELL WIRING DEVICE/KELLEMS
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Connector
• Unspsc: 39121421
• UPC 12 Digit: 783585039053
• SKU Name: hubw hbl2653

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
