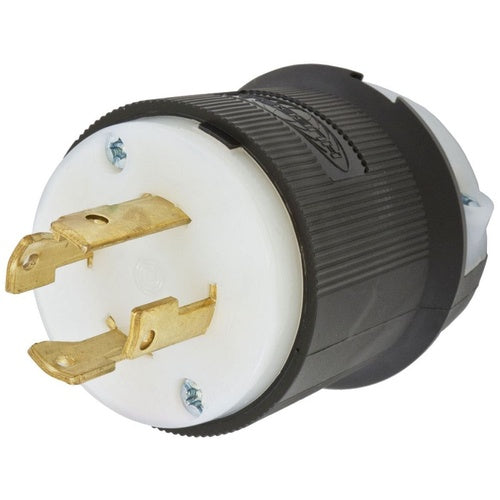

Hubbell HBL2731 Locking Plug-Nema L16-30

Product Specifications

• UPC: 78358503931
• Number Of Wires: 4
• Ground Type: Grounding
• Material: Nylon
• Color: Black/White
• Cord Size: 0.35 to 1.15 Inch
• Approval: UL 498, CSA C22.2
• Additional Information: Wire Size 16 to 8 AWG (Stranded Copper); Enclosure Rating IP20; Blade Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596
• Catalog Number: HBL2731
• Brand Name: Wiring Device-Kellems
• Type: Polarized
• Constructional Feature: Impact/Chemical Resistant
• Configuration: L16-30P
• Voltage Rating: 480 Volt AC 3-Phase
• Current Rating: 30 Amp
• Number Of Poles: 3
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, INDUSTRIAL, MALE PLUG, 30A 3-PHASE 480V AC, 3-POLE 4-WIRE GROUNDING, L16-30P, SCREW TERMINAL, BLACK AND WHITE
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Nylon Material; Black/White Color; L16-30P Configuration; 4 Wire(S); UL 498, CSA C22.2 Approval; 480 Volt AC 3-Phase Voltage Rating; 30 Amp Current Rating; Grounding; 3 Pole(S); Impact/Chemical Resistant; 0.35 to 1.15 Inch Cord Size; Twist-Lock [R], Insulgrip [R] Brand; Wire Size 16 to 8 AWG (Stranded Copper); Enclosure Rating IP20; Blade Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Plug
• Unspsc: 39121402
• UPC 12 Digit: 783585039312
• SKU Name: hubw hbl2731
