Overview

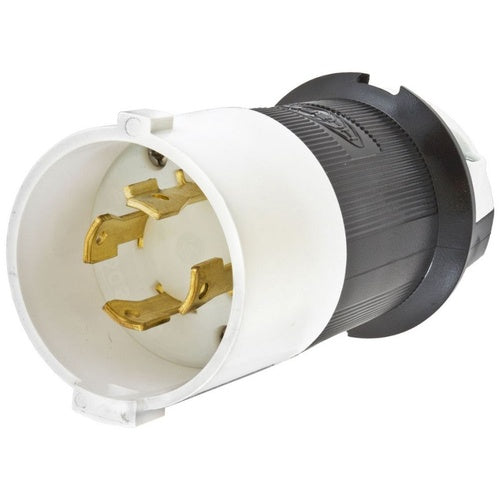

Hubbell HBL2741S Locking Safety-Shroud Plug, 30A 3P 600V, L17-30P

Product Specifications

• UPC: 78358523494
• Number Of Poles: 3
• Number Of Wires: 4
• Ground Type: Grounding
• Material: Nylon Body, Valox Shroud
• Color: Black/White
• Cord Size: 0.35 to 1.15 Inch
• Approval: UL 94/498, CSA C22.2
• Additional Information: Enclosure IP20; Temperature Rating -40 to 60 Deg C
• Catalog Number: HBL2741S
• Brand Name: Twist-Lock[R], Safety-Shroud[R]
• Model: HBL
• Type: Polarized
• Constructional Feature: Impact Resistant, Chemical Resistant
• Configuration: L17-30P
• Voltage Rating: 600 VAC 3-Phase
• Current Rating: 30 Ampere
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, SAFETY-SHROUD, MALE PLUG, 30A 3-PHASE 600V AC, 3-POLE 4-WIRE GROUNDING, NEMA L17- 30P, SCREW TERMINAL, BLACK AND WHITE NYLON BODY, WHITE PBT SHROUD.
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Nylon Body, Valox Shroud Material; Black/White Color; L17-30P Configuration; 4 Wire(S); UL 94/498, CSA C22.2 Approval; 600 VAC 3-Phase Voltage Rating; 30 Ampere Current Rating; Grounding; 3 Pole(S); Impact Resistant, Chemical Resistant; 0.35 to 1.15 Inch Cord Size; TWIST-LOCK[R], SAFETY-SHROUD[R] Brand; Enclosure IP20; Temperature Rating -40 to 60 Deg C; HBL Model
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Plug
• Unspsc: 39121402
• UPC 12 Digit: 783585234946
• SKU Name: hubw hbl2741s
