Product information
Overview

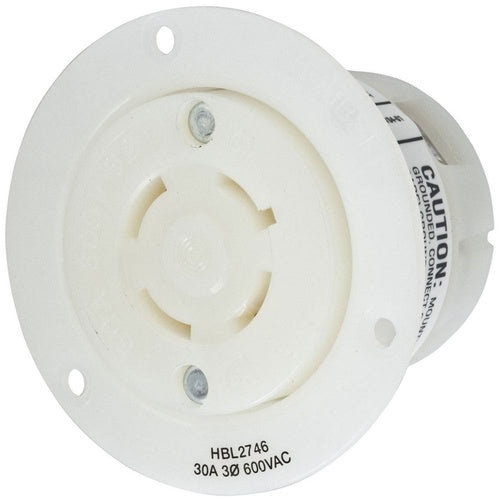

Hubbell HBL2746 Locking Flanged Outlet-Nm L17-30R
Product Specifications
- UPC: 78358503942
- Ground Type: Grounding
- Material: Nylon
- Color: White
- Approval: UL 94/498, CSA C22.2, Fed.Spec W-C-596
- Additional Information: Wire Size 16 to 8 AWG; Wiring Back; Contact Material Brass; Enclosure Rating IP20; Operating Temperature -40 to 75 Deg C; Includes Mounting Screw; Application Industrial
- Catalog Number: HBL2746
- Brand Name: Twist-Lock[R], Insulgrip[R]
- Type: Flanged
- Configuration: L17-30R
- Voltage Rating: 600 Volt AC 3-Phase
- Current Rating: 30 Amp
- Number Of Poles: 3
- Number Of Wires: 4
- Catalog Description: LOCKING DEVICES, TWIST-LOCK, INDUSTRIAL, FLANGED RECEPTACLE, 30A 3-PHASE DELTA 600V AC, 3-POLE 4-WIRE GROUNDING, L17-30R, SCREW TERMINAL, WHITE
- Category: Receptacles & Surge Protectors
- Full Technical Description: Flanged Type; Nylon Material; White Color; L17-30R Configuration; 4 Wire(S); UL 94/498, CSA C22.2, FED.SPEC W-C-596 Approval; 600 Volt AC 3-Phase Voltage Rating; 30 Amp Current Rating; Grounding; 3 Pole(S); TWIST-LOCK[R], INSULGRIP[R] Brand; Wire Size 16 to 8 AWG; Wiring Back; Contact Material Brass; Enclosure Rating IP20; Operating Temperature -40 to 75 Deg C; Includes Mounting Screw; Application Industrial
- Manufacturer: Hubbell Wiring Devices-Kellems
- Manufacturer Brand: Hubbell Wiring Devices-Kellems
- Sub Category: Locking Flanged Receptacle Outlet
- Unspsc: 39121406
- UPC 12 Digit: 783585039428
- SKU Name: hubw hbl2746
