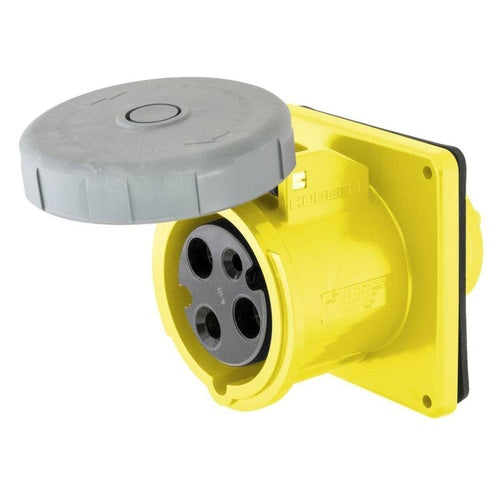

Hubbell HBL320R4W Pin And Sleeve, Iec, Receptacle, 2P3W, 20A 125V,4X/69K

Overview

Hubbell HBL320R4W Pin And Sleeve, Iec, Receptacle, 2P3W, 20A 125V,4X/69K

Product Specifications

• UPC: 78358540342
• Material: Thermoplastic
• Grade: Industrial
• Approval: UL 62/94/1682, CSA C22.2
• Additional Information: Color Yellow; Wire Size 14 to 10 AWG; Enclosure Rating IP67; Operating Temperature -40 to 75 Deg C
• Catalog Number: HBL320R4W
• Model: HBL
• Constructional Feature: Water Tight, Impact/Corrosion Resistant
• Voltage Rating: 125 Volt AC
• Current Rating: 20 Amp
• Number Of Poles: 2
• Number Of Wires: 3
• Grounding Style: Grounding
• Catalog Description: HEAVY DUTY PRODUCTS, IEC PIN AND SLEEVE DEVICES, INDUSTRIAL GRADE, FEMALE, RECEPTACLE, 20A 125V AC, 2-POLE 3- WIRE GROUNDING, TERMINAL SCREWS, YELLOW, WATERTIGHT
• Category: Pin & Sleeve Devices
• Full Technical Description: Thermoplastic Material; 3 Wire(S); Industrial Grade; UL 62/94/1682, CSA C22.2 Approval; 125 Volt AC Voltage Rating; 20 Amp Current Rating; 2 Pole(S); Water Tight, Impact/Corrosion Resistant; Grounding Grounding Style; Color Yellow; Wire Size 14 to 10 AWG; Enclosure Rating IP67; Operating Temperature -40 to 75 Deg C; HBL Model
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Pin and Sleeve Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585403427
• SKU Name: hubw hbl320r4w

Resources

• Manufacturer Spec Sheet
• Technical Line Drawing
