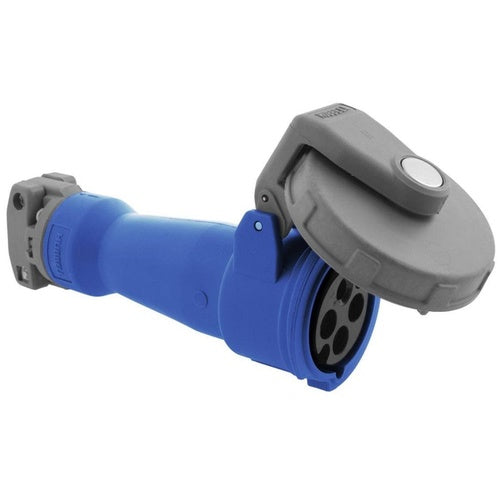

Hubbell HBL420C9W Pin And Sleeve,Iec,Connector,3P4W, 16/20A 200-250V,4X/69K

Overview

Hubbell HBL420C9W Pin And Sleeve,Iec,Connector,3P4W, 16/20A 200-250V,4X/69K

Product Specifications

• UPC: 78358540433
• Minimum Cable Outer Diameter: 0.33 Inch
• Maximum Cable Outer Diameter: 0.83 Inch
• Material: Zytel ST801 Nylon
• Approval: UL 498/1682/1686C2, CSA C22.2
• Additional Information: Color Blue; Enclosure Rating IP67; Temperature Rating -40 to 75 Deg C; Applicable Standard IEC 60309-1/60309-2
• Catalog Number: HBL420C9W
• Brand Name: Wiring Device-Kellems
• Type: Polarized
• Constructional Feature: Impact Resistant, Water Tight
• Voltage Rating: 250 Volt AC 3-Phase
• Current Rating: 20 Amp
• Number Of Poles: 3
• Number Of Wires: 4
• Catalog Description: HEAVY DUTY PRODUCTS, IEC PIN AND SLEEVE DEVICES, INDUSTRIAL GRADE, FEMALE, CONNECTOR BODY, 20A 3-PHASE DELTA 250V AC, 3-POLE 4-WIRE GROUNDING, TERMINAL SCREWS, BLUE, WATERTIGHT
• Category: Pin & Sleeve Devices
• Full Technical Description: Polarized Type; Zytel ST801 Nylon Material; 0.33 Inch min. Cable Outer Diameter; 0.83 Inch Max. Cable Outer Diameter; 4 Wire(S); UL 498/1682/1686C2, CSA C22.2 Approval; 250 Volt AC 3-Phase Voltage Rating; 20 Amp Current Rating; 3 Pole(S); Impact Resistant, Water Tight; Color Blue; Enclosure Rating IP67; Temperature Rating -40 to 75 Deg C; Applicable Standard IEC 60309-1/60309-2
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Pin and Sleeve Connector
• Unspsc: 39121421
• UPC 12 Digit: 783585404332
• SKU Name: hubw hbl420c9w
