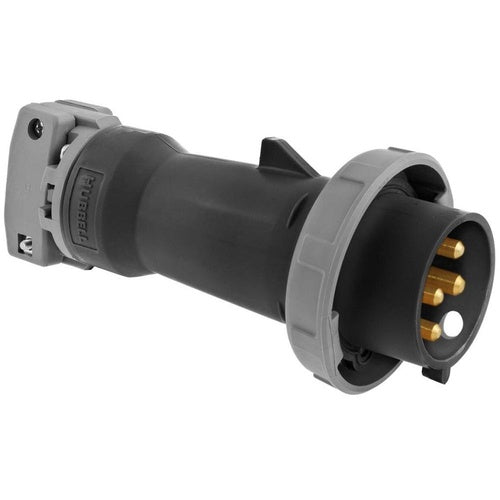

Hubbell HBL420P5W Pin And Sleeve, Iec, Plug, 3P4W, 20A 3P 600V,4X/69K

Overview

Hubbell HBL420P5W Pin And Sleeve, Iec, Plug, 3P4W, 20A 3P 600V,4X/69K

Product Specifications

• UPC: 78358540436
• Minimum Cable Outer Diameter: 0.33 Inch
• Maximum Cable Outer Diameter: 0.83 Inch
• Material: Zytel ST801 Nylon
• Approval: UL 1682/1686C2, CSA C22.2
• Additional Information: Enclosure IP67; Pin Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard IEC 60309-1/60309-2
• Catalog Number: HBL420P5W
• Model: HBL
• Type: Polarized
• Constructional Feature: Impact Resistant, Watertight
• Voltage Rating: 600 V 3-Phase
• Current Rating: 20 Ampere
• Number Of Poles: 3
• Number Of Wires: 4
• Catalog Description: HEAVY DUTY PRODUCTS, IEC PIN AND SLEEVE DEVICES, INDUSTRIAL GRADE, MALE PLUG, 20A 3-PHASE DELTA 600V AC, 3-POLE 4-WIRE GROUNDING, TERMINAL SCREWS, BLACK, WATERTIGHT
• Category: Pin & Sleeve Devices
• Full Technical Description: Polarized Type; Zytel ST801 Nylon Material; 0.33 Inch min. Cable Outer Diameter; 0.83 Inch Max. Cable Outer Diameter; 4 Wire(S); UL 1682/1686C2, CSA C22.2 Approval; 600 V 3-Phase Voltage Rating; 20 Ampere Current Rating; 3 Pole(S); Impact Resistant, Watertight; CIRCUIT-LOCK[R] Brand; Enclosure IP67; Pin Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard IEC 60309-1/60309-2; HBL Model
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Pin and Sleeve Plug
• Unspsc: 39121402
• UPC 12 Digit: 783585404363
• SKU Name: hubw hbl420p5w
