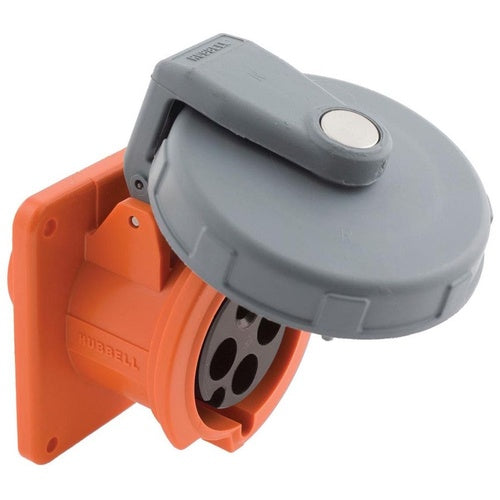

Hubbell HBL420R12W Pin And Sleeve, Iec, Receptacle, 3P4W, 20A 125/250V,4X/69K

Overview

Hubbell HBL420R12W Pin And Sleeve, Iec, Receptacle, 3P4W, 20A 125/250V,4X/69K

Product Specifications

• UPC: 78358540440
• Material: Zytel 101 Nylon
• Grade: Industrial
• Approval: UL 62/94/1682/1686C2, CSA C22.2
• Additional Information: Applicable Standard IEC 60309-1 IEC 60309-2; Enclosure IP67; Operating Temperature -40 to 75 Deg C
• Catalog Number: HBL420R12W
• Type: Polarized
• Constructional Feature: Impact Resistant, Watertight, Corrosion Resistant, Chemical Resistant
• Voltage Rating: 125/250 V
• Current Rating: 20 Ampere
• Number Of Poles: 3
• Number Of Wires: 4
• Door Type: Spring Cover
• Catalog Description: HEAVY DUTY PRODUCTS, IEC PIN AND SLEEVE DEVICES, INDUSTRIAL GRADE, FEMALE, RECEPTACLE, 20A 125/250V, 3-POLE 4- WIRE GROUNDING, TERMINAL SCREWS, ORANGE, WATERTIGHT
• Category: Pin & Sleeve Devices
• Full Technical Description: Polarized Type; Zytel 101 Nylon Material; 4 Wire(S); Industrial Grade; UL 62/94/1682/1686C2, CSA C22.2 Approval; 125/250 V Voltage Rating; 20 Ampere Current Rating; 3 Pole(S); Impact Resistant, Watertight, Corrosion Resistant, Chemical Resistant; Spring Cover; Applicable Standard IEC 60309-1 IEC 60309-2; Enclosure IP67; Operating Temperature -40 to 75 Deg C
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Pin and Sleeve Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585404400
• SKU Name: hubw hbl420r12w

Resources

• Manufacturer Spec Sheet
• Technical Line Drawing
