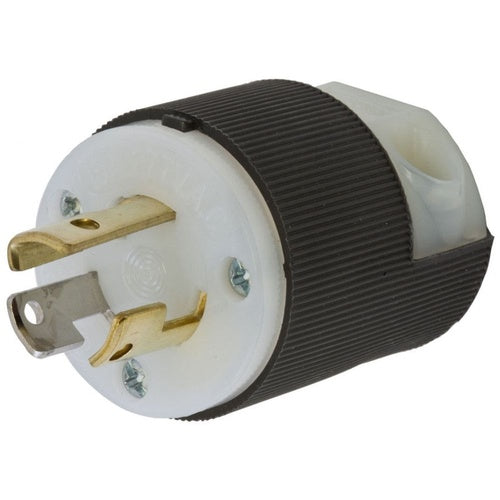

Hubbell HBL4770C Locking Plug-Nm L7-15P

Overview

Hubbell HBL4770C Locking Plug-Nm L7-15P

Product Specifications

• UPC: 78358517170
• Number Of Wires: 3
• Ground Type: Grounding
• Material: Nylon
• Color: Black/White
• Cord Size: 0.23 to 0.72 Inch
• Approval: UL 498, CSA C22.2
• Additional Information: Wire Size 16 to 8 AWG (Stranded Copper); Enclosure Rating IP20; Blade Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596
• Catalog Number: HBL4770C
• Brand Name: Wiring Device-Kellems
• Type: Polarized
• Constructional Feature: Impact/Chemical Resistant
• Configuration: L7-15P
• Voltage Rating: 277 Volt AC
• Current Rating: 15 Amp
• Number Of Poles: 2
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, INDUSTRIAL, MALE INSULGRIP PLUG, 15A 277V AC, 2-POLE 3-WIRE GROUNDING, NEMA L7-15P, SCREW TERMINAL, BLACK AND WHITE NYLON.
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Nylon Material; Black/White Color; L7-15P Configuration; 3 Wire(S); UL 498, CSA C22.2 Approval; 277 Volt AC Voltage Rating; 15 Amp Current Rating; Grounding; 2 Pole(S); Impact/Chemical Resistant; 0.23 to 0.72 Inch Cord Size; Twist-Lock [R], Insulgrip [R] Brand; Wire Size 16 to 8 AWG (Stranded Copper); Enclosure Rating IP20; Blade Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Plug
• Unspsc: 39121402
• UPC 12 Digit: 783585171708
• SKU Name: hubw hbl4770c
