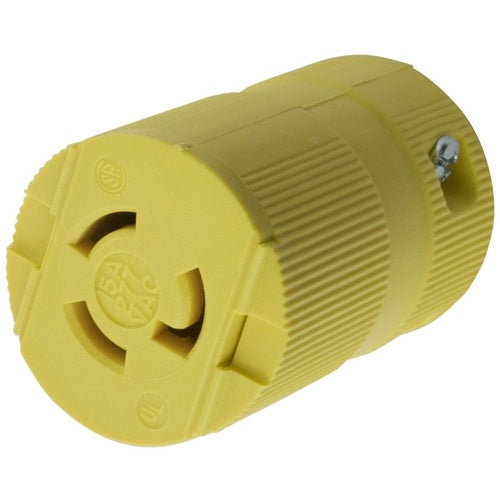

Hubbell HBL4779VY Locking Valise Connector, 15A 277V, L7-15R, Val, Yellow

Overview

Hubbell HBL4779VY Locking Valise Connector, 15A 277V, L7-15R, Val, Yellow

Product Specifications

• UPC: 78358523696
• Number Of Poles: 2
• Number Of Wires: 3
• Ground Type: Grounding
• Material: Nylon
• Color: Yellow
• Cord Size: 0.22 to 0.66 Inch
• Approval: UL 94/498, CSA C22.2
• Additional Information: Contact Material Brass; Enclosure IP20; Temperature Rating -40 to 60 Deg C
• Catalog Number: HBL4779VY
• Brand Name: Twist-Lock[R]
• Model: HBL
• Type: Polarized
• Constructional Feature: Impact Resistant, Crush Resistant
• Configuration: L7-15R
• Voltage Rating: 277 VAC
• Current Rating: 15 Ampere
• Catalog Description: TWIST-LOCK VALISE, FEMALE CONNECTOR BODY, 15A 277V AC, 2-POLE 3-WIRE GROUNDING, NEMA L7-15R, SCREW TERMINAL NYLON
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Nylon Material; Yellow Color; L7-15R Configuration; 3 Wire(S); UL 94/498, CSA C22.2 Approval; 277 VAC Voltage Rating; 15 Ampere Current Rating; Grounding; 2 Pole(S); Impact Resistant, Crush Resistant; 0.22 to 0.66 Inch Cord Size; TWIST-LOCK[R], VALISE[R] Brand; Contact Material Brass; Enclosure IP20; Temperature Rating -40 to 60 Deg C; HBL Model
• Manufacturer: HUBBELL WIRING DEVICE/KELLEMS
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Connector
• Unspsc: 39121421
• UPC 12 Digit: 783585236964
• SKU Name: hubw hbl4779vy
