Overview

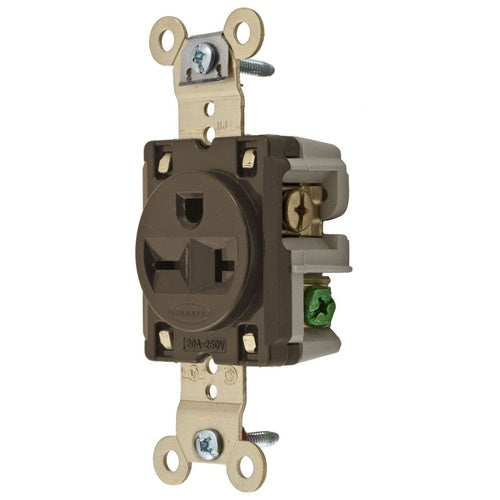

Hubbell HBL5461 Single Receptacle, Industrial Grade, 20A 250V, 6-20R, Brown

Product Specifications

• UPC: 78358501395
• Number Of Poles: 2
• Number Of Wires: 3
• Ground Type: Grounding
• Material: Nylon (Face), PBT (Base)
• Color: Brown
• Wiring: Back, Side
• Grade: Extra Heavy Duty Industrial Specification
• Approval: UL 498, CSA C22.2
• Additional Information: Power Rating 2 HP; Material Brass (Contact/Strap); Temperature Rating -40 to 75 Deg C; Flammability Rating UL 94 V-2 (Top), UL 94 V-0 and UL 94-5 VA (Base); Applicable Standard NEMA WD-6
• Catalog Number: HBL5461
• Brand Name: Wiring Device-Kellems
• Model: HBL5461
• Type: Single
• Constructional Feature: Impact Resistant
• Configuration: 6-20R
• Voltage Rating: 250 Volt
• Current Rating: 20 Amp
• Catalog Description: STRAIGHT BLADE DEVICES, RECEPTACLES, SINGLE, SPECIFICATION GRADE, 2-POLE 3-WIRE GROUNDING, 20A 250V, 6-20R, BROWN, SINGLE PACK
• Category: Wall Plates & Covers
• Full Technical Description: Single Type; Nylon (Face), Pbt (Base) Material; Brown Color; 6-20R Configuration; 3 Wire(S); Extra Heavy Duty Industrial Specification Grade; UL 498, CSA C22.2 Approval; 250 Volt Voltage Rating; 20 Amp Current Rating; Grounding; 2 Pole(S); Impact Resistant; Back, Side Wiring; Hbl [R] Brand; Power Rating 2 HP; Material Brass (Contact/Strap); Temperature Rating -40 to 75 Deg C; Flammability Rating UL 94 V-2 (Top), UL 94 V-0 and UL 94-5 VA (Base); Applicable Standard NEMA Wd-6; HBL5461 Model
• Manufacturer: HUBBELL WIRING DEVICE/KELLEMS
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Duplex/Single Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585013954
• SKU Name: hubw hbl5461
