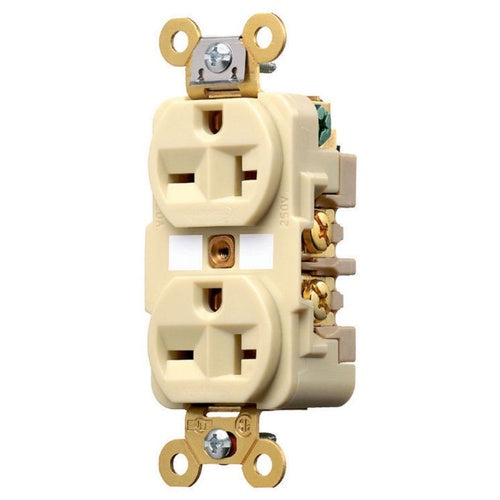

Hubbell HBL5462I Duplex Industrial Grade Receptacle-Nema6-20R Ivory

Overview

Hubbell HBL5462I Duplex Industrial Grade Receptacle-Nema6-20R Ivory

Product Specifications

• UPC: 78358543552
• Number Of Wires: 3
• Ground Type: Grounding
• Material: Nylon (Face), PBT (Base)
• Color: Ivory
• Wiring: Back, Side
• Grade: Specification
• Approval: UL 94/498, CSA C22.2, Fed.Spec W-C-596
• Additional Information: Wire Size 14 to 10 AWG; Contact Material Brass; Temperature Rating -40 to 75 Deg C
• Catalog Number: HBL5462I
• Brand Name: HBL[R]
• Type: Finder Groove Face Duplex
• Constructional Feature: Impact Resistant
• Configuration: 6-20R
• Voltage Rating: 250 Volt
• Current Rating: 20 Amp
• Number Of Poles: 2
• Catalog Description: STRAIGHT BLADE DEVICES, RECEPTACLES, DUPLEX, SPECIFICATION GRADE, 2-POLE 3-WIRE GROUNDING, 20A 250V, 6-20R, IVORY, SINGLE PACK
• Category: Receptacles & Surge Protectors
• Full Technical Description: Finder Groove Face Duplex Type; Nylon (Face), Pbt (Base) Material; Ivory Color; 6-20R Configuration; 3 Wire(S); Specification Grade; UL 94/498, CSA C22.2, FED.SPEC W-C-596 Approval; 250 Volt Voltage Rating; 20 Amp Current Rating; Grounding; 2 Pole(S); Impact Resistant; Back, Side Wiring; Hbl [R] Brand; Wire Size 14 to 10 AWG; Contact Material Brass; Temperature Rating -40 to 75 Deg C
• Manufacturer: HUBBELL WIRING DEVICE/KELLEMS
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Duplex/Single Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585435527
• SKU Name: hubw hbl5462i

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
