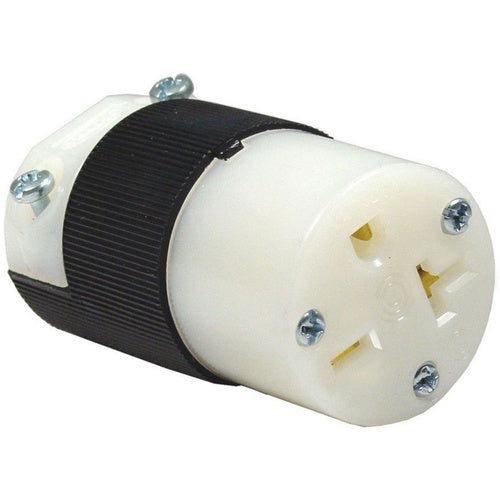

Hubbell HBL5469C Connector-Nema6-20R

Overview

Hubbell HBL5469C Connector-Nema6-20R

Product Specifications

• UPC: 78358517485
• Color: Black/White
• Cord Size: 0.23 to 0.72 Inch
• Material: Nylon
• Approval: UL 498, CSA C22.2
• Additional Information: Contact Material 0.04 Inch Brass; Enclosure Rating IP20; Temperature Rating -40 to 75 Deg C
• Catalog Number: HBL5469C
• Brand Name: Wiring Device-Kellems
• Configuration: 6-20R
• Voltage Rating: 250 Volt AC
• Current Rating: 20 Amp
• Number Of Poles: 2
• Number Of Wires: 3
• Ground Type: Grounding
• Catalog Description: STRAIGHT BLADE DEVICES, FEMALE CONNECTOR BODY, INSULGRIP HEAVY DUTY, INDUSTRIAL/COMMERCIAL GRADE, STRAIGHT, 2- POLE 3-WIRE GROUNDING, 20A 250V, 6-20R, BLACK AND WHITE, SINGLE PACK.
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Nylon Material; Black/White Color; 6-20R Configuration; 3 Wire(S); UL 498, CSA C22.2 Approval; 250 Volt AC Voltage Rating; 20 Amp Current Rating; Grounding; 2 Pole(S); 0.23 to 0.72 Inch Cord Size; Insulgrip [R] Brand; Contact Material 0.04 Inch Brass; Enclosure Rating IP20; Temperature Rating -40 to 75 Deg C
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Straight Blade Connector
• Unspsc: 39121421
• UPC 12 Digit: 783585174853
• SKU Name: hubw hbl5469c
