Product information
Overview

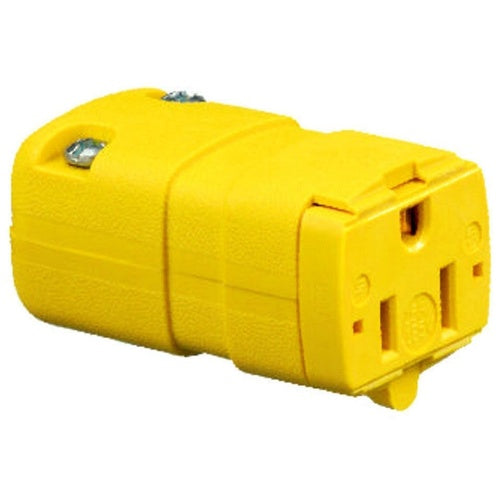

Hubbell HBL5963VY Valise Connector, 15A 125V, 5-15R, Vy
Product Specifications
- UPC: 78358501960
- Number Of Wires: 3
- Ground Type: Grounding
- Color: Yellow
- Cord Size: 0.23 to 0.36 Inch
- Material: Nylon
- Approval: UL 498, UL FS, CSA C22.2
- Additional Information: Applicable Standard NEMA WD 6; Enclosure IP20; Operating Temperature -40 to 75 Deg C
- Catalog Number: HBL5963VY
- Brand Name: Valise[R]
- Type: Polarized
- Constructional Feature: Crush Resistant, Impact Resistant
- Configuration: 5-15R
- Voltage Rating: 125 V
- Current Rating: 15 Ampere
- Number Of Poles: 2
- Catalog Description: STRAIGHT BLADE DEVICES, FEMALE CONNECTOR BODY, VALISE SERIES, INDUSTRIAL/COMMERCIAL GRADE, STRAIGHT, 2-POLE 3- WIRE GROUNDING, 15A 125V, 5-15R, YELLOW, SINGLE PACK.
- Category: Plugs,Conn,Inlets,Outlets,Lampholdr
- Full Technical Description: Polarized Type; Nylon Material; Yellow Color; 5-15R Configuration; 3 Wire(S); UL 498, UL FS, CSA C22.2 Approval; 125 V Voltage Rating; 15 Ampere Current Rating; Grounding; 2 Pole(S); Crush Resistant, Impact Resistant; 0.23 to 0.36 Inch Cord Size; VALISE[R] Brand; Applicable Standard NEMA Wd 6; Enclosure IP20; Operating Temperature -40 to 75 Deg C
- Manufacturer: Hubbell Wiring Devices-Kellems
- Manufacturer Brand: Hubbell Wiring Devices-Kellems
- Sub Category: Straight Blade Connector
- Unspsc: 39121421
- UPC 12 Digit: 783585019604
- SKU Name: hubw hbl5963vy
